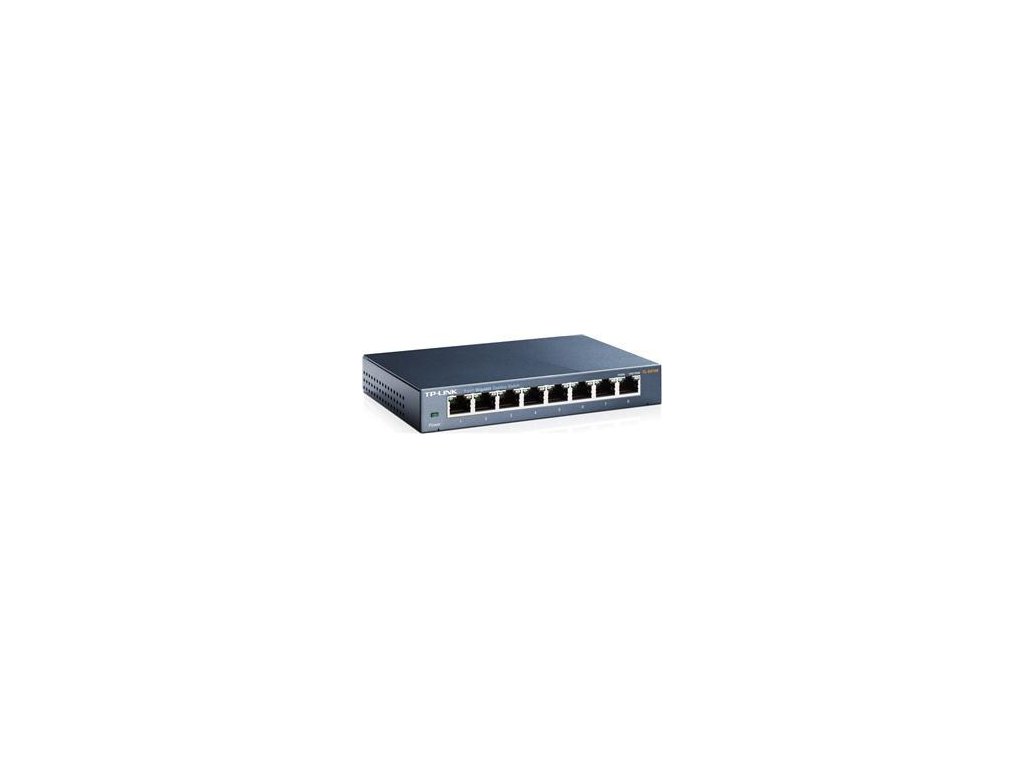

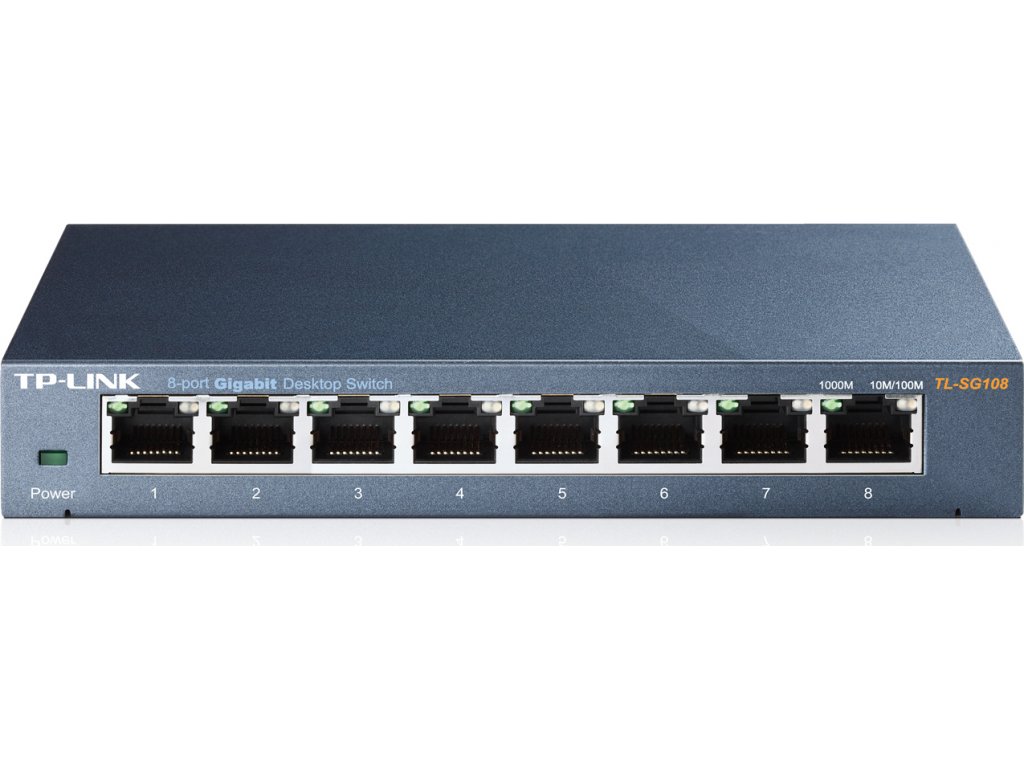

TP-Link TL-SG108

Kód: 51722222

Podrobný popis

8-Port 10/100/1000Mbps Desktop Switch

OVERVIEW

The TP-LINK 8 10/100/1000Mbps Desktop Switch TL-SG108 provides you an easy way to make the transition to gigabit Ethernet. Increase the speed of your network server and backbone connections, or make gigabit to the desktop a reality. Moreover, TL-SG108 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG108 can save up to 72% of the power consumption, making it an eco-friendly solution for your home or office network.

FEATURES

• Innovative energy-efficient technology saves power up to 72%

• Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode

• Steel design, desktop or wall-mounting design

• Supports QoS (IEEE 802.1p) function

• Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput

• 9K Jumbo frame improves performance of large data transfers

• Auto-MDI/MDIX eliminates the need for crossover cables

• Supports MAC address auto-learning and auto-aging

• Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware

• Fanless design ensures quiet operation

• Plug and Play design simplifies installation

HARDWARE FEATURES

Standards and Protocols

• IEEE 802.3/802.3u/ 802.3ab/ 802.3x

• CSMA/CD

Interface

• 8 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX

External Power Supply

• 100-240VAC, 50/60Hz

Dimensions (W X D X H)

• 158 x 101 x 25 mm

Fan Quantity

• Fanless

LED Indicator

• System Power

• Link, Speed and activity indicators per port built into each RJ-45 port

SOFTWARE FEATURES

Advanced Features

• Green Technology,saving power up to 72%

• 802.3X Flow Control

• Supports QoS (IEEE802.1P)

Transfer Method

• Store and Forward

OTHERS

Certification

• CE, FCC ,RoHS

Package Contents

• 8-Port 10/100/1000Mbps Desktop Switch

• Power Adapter

• User Guide

System Requirements

• Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, Mac® OS, NetWare®, UNIX® or Linux.

Související odkazy

Související dokumenty

Dodatočné parametre

Kategória: Switche
Záruka: 60
Hmotnosť: 0.53 kg
Fanless switch: Ano
Hloubka jedn. balení: 9.4
Hmotnosť: 0.53 kg
Kód výrobcu: TL-SG108
Management: Unmanaged switch
Obsahuje switch: Ano
Optika: Ne
Počet kusů jedn. balení: 1
Počet kusů v kartonu: 24
Počet LAN portů: 8
POE: Ne
Provedení switche: Desktop
Rozměr xyz jedn. balení: 13.2x19.3x9.4
Rozměr xyz kartonu: 43x36x37
Rychlost LAN max.: 1 Gbps
Šířka jedn. balení: 13.2
Typ balení jedn. balení: Balitelné
Typ balení kartonu: Balitelné
Typ obalu kartón: Expedovatelné
Výška jedn. balení: 19.3
Záruka: 60
