TP-Link TL-SG105E
Kód: 51722194Podrobný popis

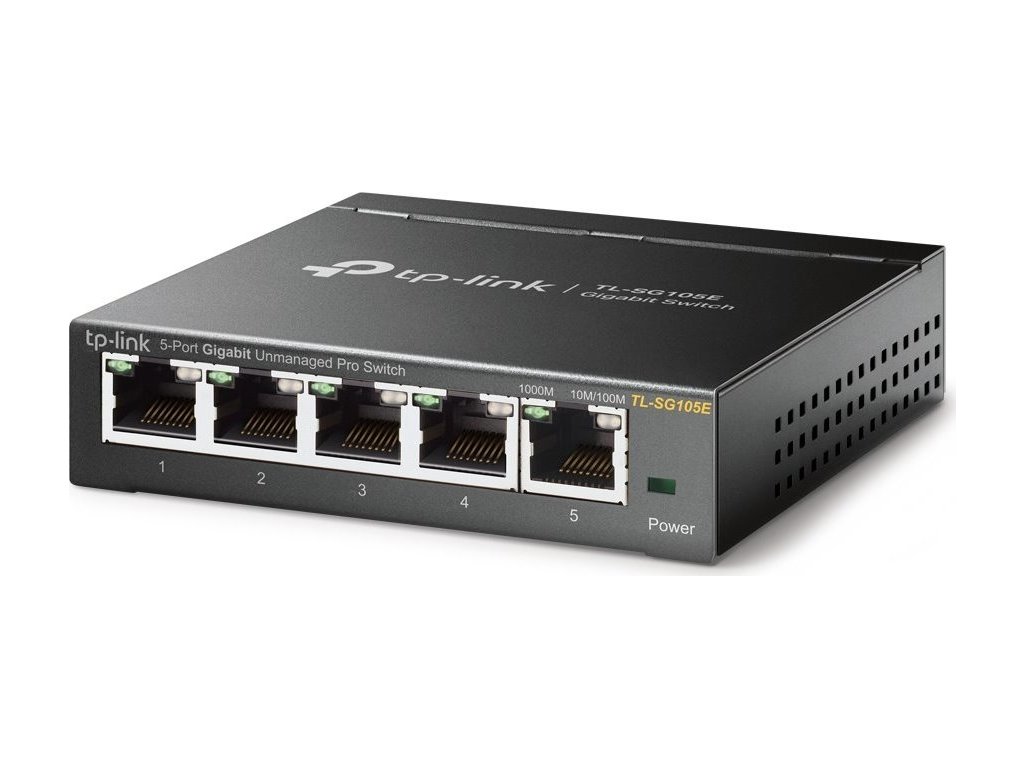

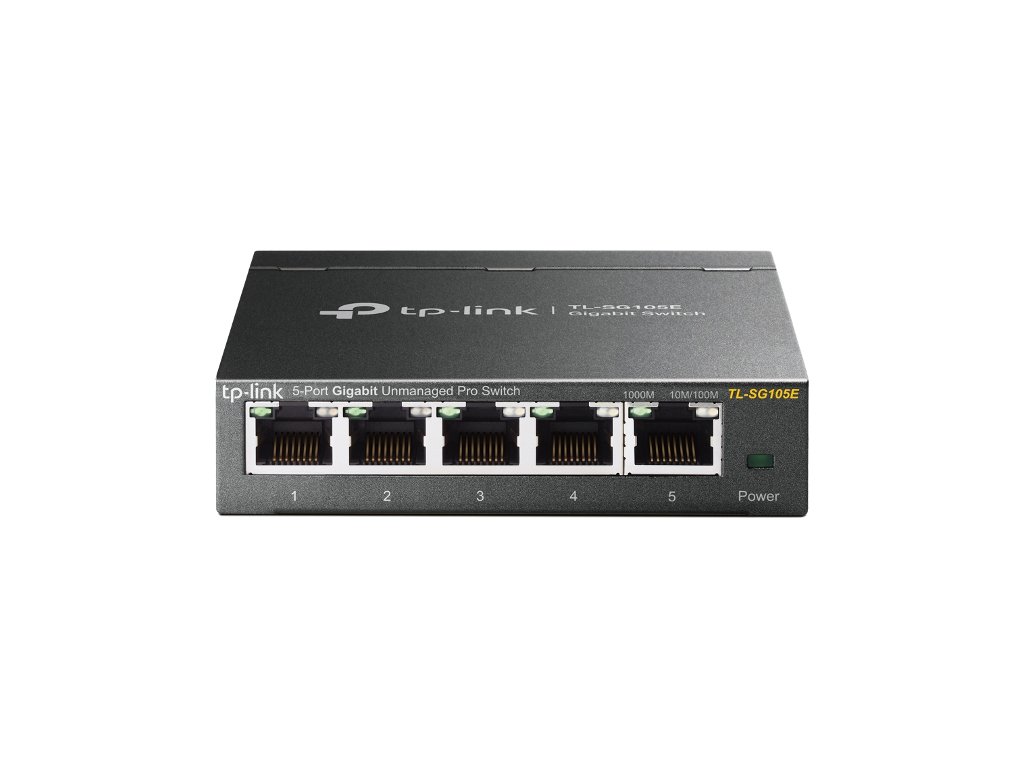

TP-Link TL-SG105E 5-Port Gigabit Easy Smart Switch
OVERVIEW
* 5 10/100/1000Mbps RJ45 ports
* Provides network monitoring, traffic prioritization and VLAN features
* Innovative energy-efficient technology reduces power output by up to 75%
* Simple network set-up on top of plug-and-play connectivity
* Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility
SPECIFICATIONS
HARDWARE FEATURES
Standards and Protocols
* IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface
* 5 10/100/1000Mbps RJ45 Ports
* AUTO Negotiation/AUTO MDI/MDIX
Network Media
* 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
* EIA/TIA-568 100? STP (maximum 100m)
* 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
* EIA/TIA-568 100? STP (maximum 100m)
* 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
* EIA/TIA-568 100? STP (maximum 100m)
Dimensions (W X D X H)
* 100 * 98 *25 mm
Fan Quantity
* Fanless
Power Supply
* 100-240VAC, 50/60Hz
* PERFORMANCE
MAC Address Table
* 8K
Packet Buffer Memory
* 2Mb
Packet Forwarding Rate
* 7.4Mpps
Jumbo Frame
* 16KB
SOFTWARE FEATURES
Quality of Service
* Support Port Based/802.1p Based priority
* Support 4 priority queues
* Rate Limit
* Storm Control
L2 Features
* IGMP Snooping
* Link Aggregation
* Port Mirroring
* Cable Diagnostics
* Loop Prevention
VLAN
* Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
* MTU/Port/Tag VLAN
Transmission Method
* Store-And-Forward
OTHERS
Certification
* FCC, CE, RoHS
Package Contents
* TL-SG105E
* Power Cord
* Installation Guide
* Resource CD
* Rubber Feet
System Requirements
* Microsoft® Windows® XP, Vista™ Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
Environment
* Operating Temperature: 0°C~40°C
* Storage Temperature: -40°C~70°C
* Operating Humidity: 10%~90% non-condensing
* Storage Humidity: 5%~90% non-condensing
Související odkazy
Související dokumenty
Dodatočné parametre
| Kategória: | Switche |
|---|---|
| Záruka: | 60 |
| Hmotnosť: | 0.45 kg |
| Fanless switch: | Ano |
| Hloubka jedn. balení: | 9.5 |
| Hmotnosť: | 0.45 kg |
| Kód výrobcu: | TL-SG105E |
| Management: | Smart switch |
| Obsahuje switch: | Ano |
| Optika: | Ne |
| Počet kusů jedn. balení: | 1 |
| Počet kusů v kartonu: | 24 |
| Počet LAN portů: | 5 |
| POE: | Ne |
| Provedení switche: | Desktop |
| Rozměr xyz jedn. balení: | 13.2x13.1x9.5 |
| Rozměr xyz kartonu: | 54.6x40.1x30.9 |
| Rychlost LAN max.: | 1 Gbps |
| Šířka jedn. balení: | 13.2 |
| Typ balení jedn. balení: | Balitelné |
| Typ balení kartonu: | Balitelné |
| Typ obalu kartón: | Expedovatelné |
| Výška jedn. balení: | 13.1 |
| Záruka: | 60 |
