MikroTik RouterBOARD RB951Ui-2HnD

Podrobný popis

PRESENTATION VIDEO

RB951Ui-2HnD

OVERVIEW

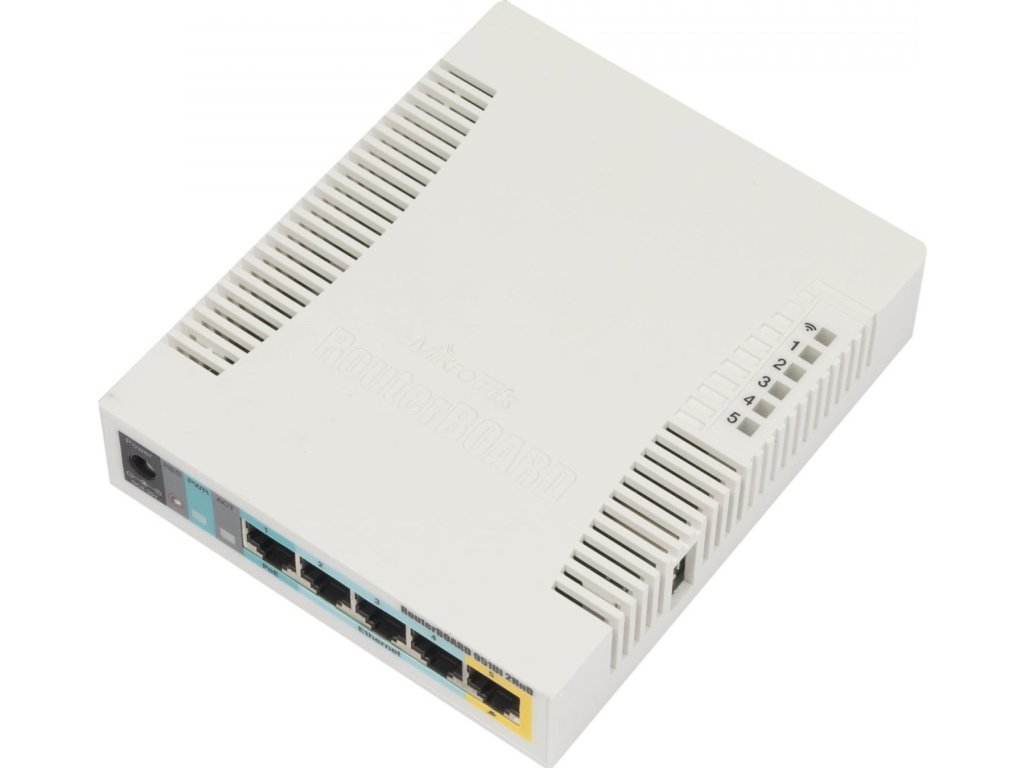

The RB951Ui-2HnD is a wireless SOHO AP with a new generation Atheros CPU and more processing power. It has five Ethernet ports, one USB 2.0 port and a high power 2.4GHz 1000mW 802.11b/g/n wireless AP with antennas built in.

It has a 600MHz CPU,128MB of RAM and PoE output function for port #5 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

Package contains RouterBOARD 951Ui-2HnD in a plastic case and power adapter.

SPECIFICATIONS

Product code

• RB951Ui-2HnD

CPU speed

• 600MHz

CPU cores

• 1

RAM

• 128

LAN ports

• 5

Gigabit

• No

MiniPCI

• 0

Integrated Wireless

• Yes

Wireless standards

• 802.11b/g/n

USB

• 1

Power Jack

• Yes

802.3af support

• No

PoE

• 8-30V DC on Ether1

Voltage Monitor

• No

PCB temperature monitor

• No

CPU temperature monitor

• No

Dimensions

• 113x138x29mm

Operating Systém

• RouterOS

Temperature range

• -20C +50C

RouterOS License

• L4

Antenna gain

• 2.5dBi

Current Monitor

• No

TX power

• 30dBm

Max Power consumption

• Up to 7W

SFP ports

• 0
