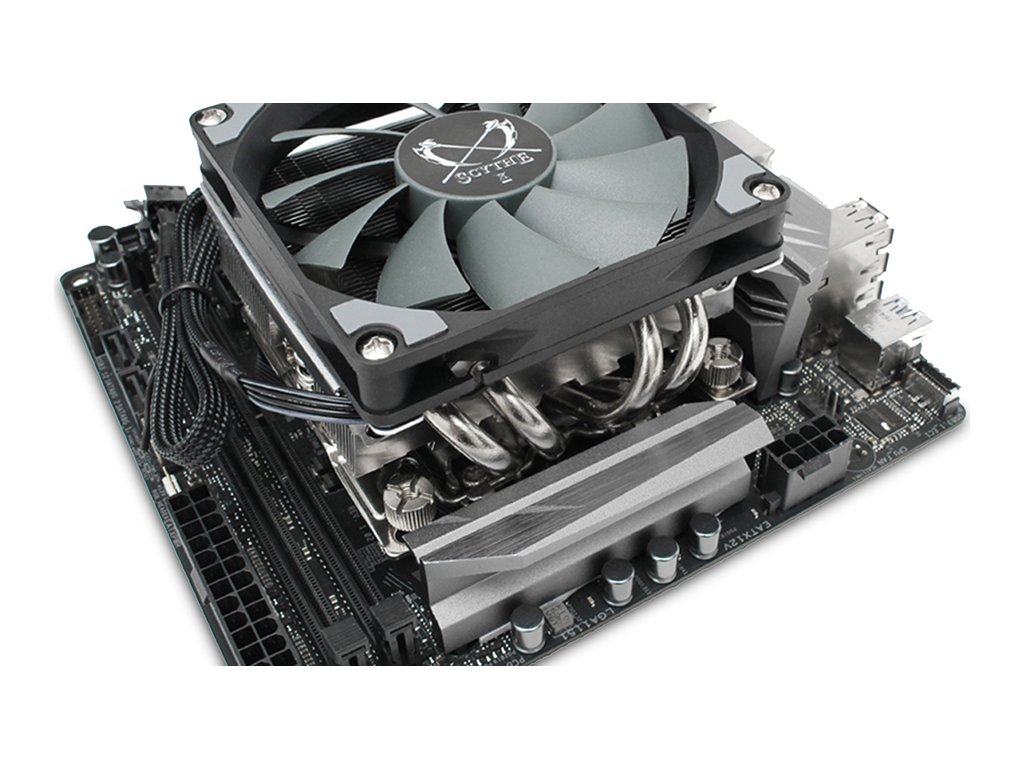

SCYTHE SCSK-2000 SHURIKEN 2 CPU Cooler

Podrobný popis

Nová verze populárního nízkoprofilového chladiče s výškou pouze 58mm

- Original size 92mm low profile top flow cooler. Equipped with 4 6mm diameter heat pipes, total height 58mm .

- Optimal for slim case and Mini- ITX case by design of 58mm in height

- Cooler body top top flow directing wind to the motherboard direction from the over expression airflow structure adopted

allows peripheral cooling on the motherboard such VRM non CPU .

- It is equipped with a 15mm thick fan (KAZE-FLEX 92 SLIM PWM is 16mm thick including anti-vibration rubber pad) as standard. Screws that can be replaced with a

92mm square 25mm thick fan (KAZE-FLEX 92 PWM is a 26mm thick fan with vibration-proof rubber pads included) are included.

- The heat pipe adopts a luxurious “ nickel plating treatment” to prevent oxidation.

-Thick copper heat receiving base plate ensures that CPU heat is absorbed.

- Uses the KAZE-FLEX 92 SLIM PWM, a 92mm 16mm thin slim PWM fan. ·

- Equipped with the latest KAZE FLEX slim fan, which adopts `` Fluid Dynamic Bearing '' (FDB), which has a long service life and excellent quietness.

Good vibration isolation

- Wide-range RPM * heatsink design that provides optimum cooling performance at any speed from low to high speed . Support from ultra-quiet mode to casual overclocking!

* Designed to always exert maximum performance at the fan speed. As the rotation speed increases, the cooling performance also increases linearly, so that the cooling capacity does not suddenly peak. In addition, a constant cooling performance is always maintained even when the rotation speed drops, and there is no sudden drop in cooling capacity.

-New spring screw specification "bridge type retention" is adopted. A bridge type retention system that passes a metal bar to the base of the heat sink is added to the spring screw specification

large heat sink with a secure installation and simple installation procedure. For specifications that can obtain a fixed pressure

Specifications summary

Model number SCSK-2000

EAN 4571225057187

size 94 (W) x 58 (H) x 93 (D) mm ( including the largest protrusion of each part)

Fan size 92 × 92 × 16 mm thick

Fan rotation speed (PWM variable) 300 (± 200 rpm)-2500 rpm (± 10%)

Noise and air volume 1.8 to 23.2 dBA / 4.96 to 41.3 CFM

Static pressure 0.2 to 13.34 Pa / 0.02 to 1.36 mmH2O

Supported CPU

Intel 775/1151/1150/1155/1156/1366 (Not compatible with 2011 (V3) and 2066)

AMD AM2 / AM2 + / AM3 / AM3 + / FM1 / FM2 / FM2 + / AM4 / ( TR4 is not supported )

Connection Fan: PWM 4-pin

weight 350 g (including fan)

heat pipe 6mm diameter x 4 (nickel plated)

accessories Multilingual manual with retention kit, grease and illustrations (including Japanese)

Package size and weight 120 (W) × 100 (H) × 125 ( D) mm · 600g
