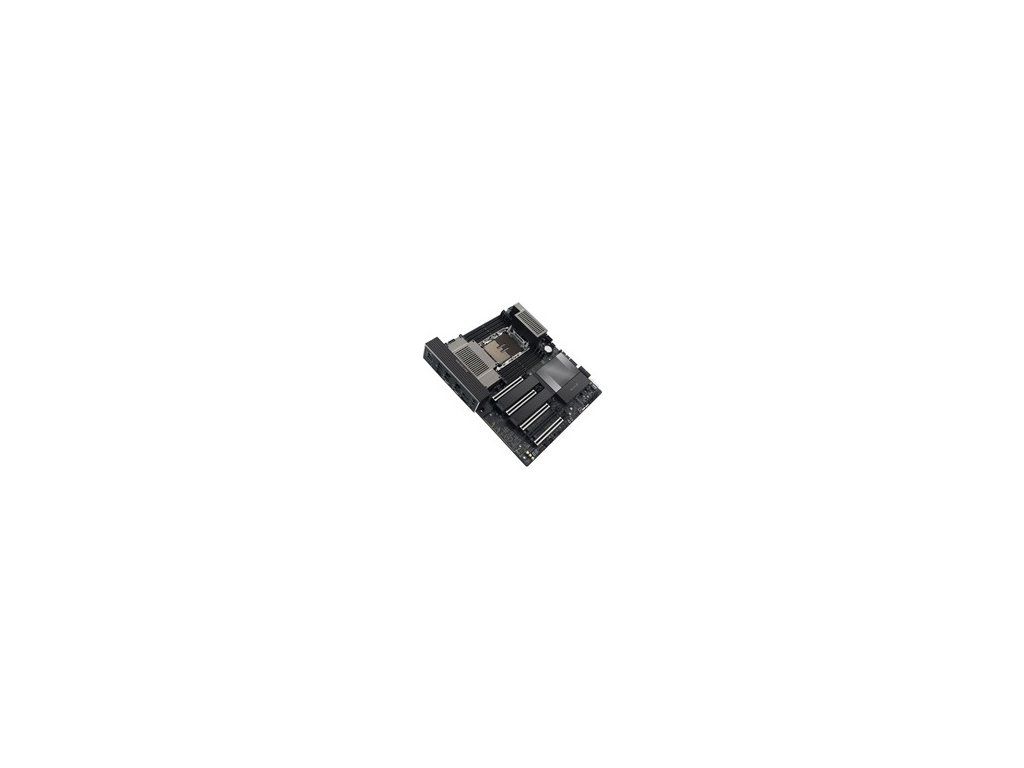

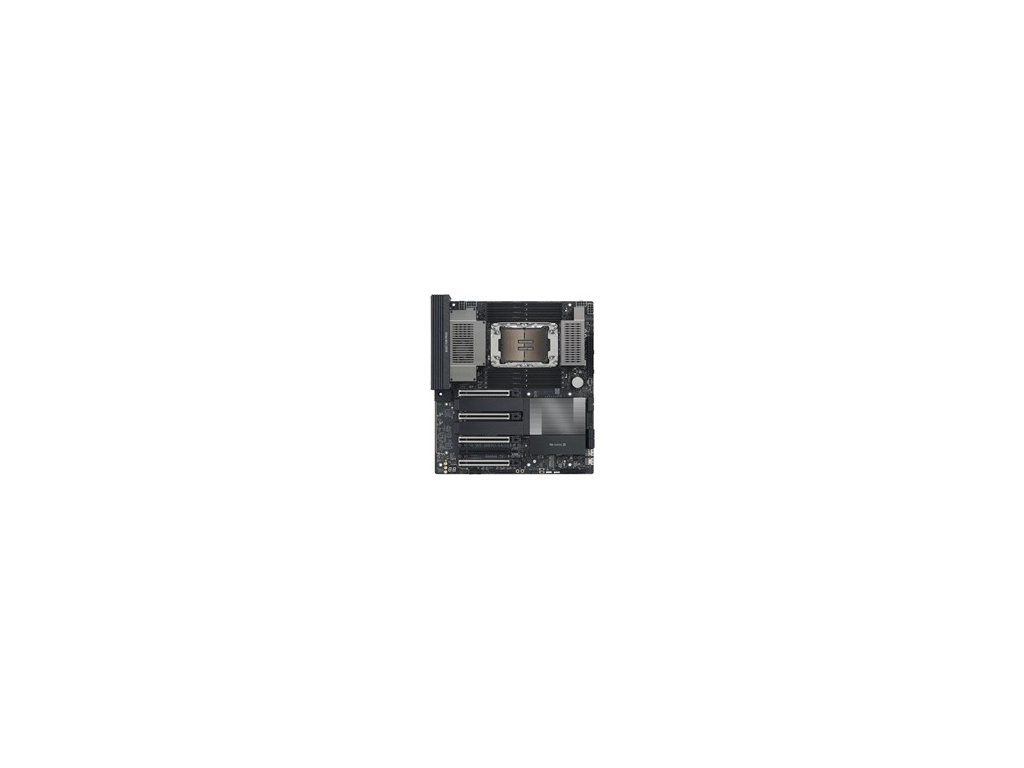

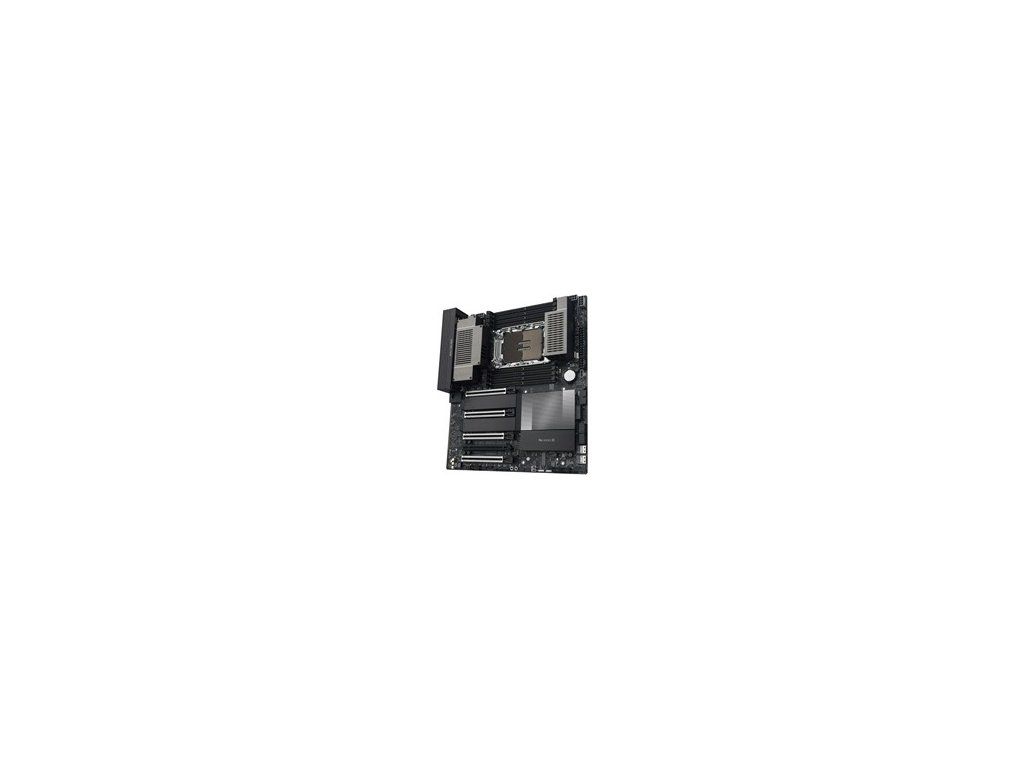

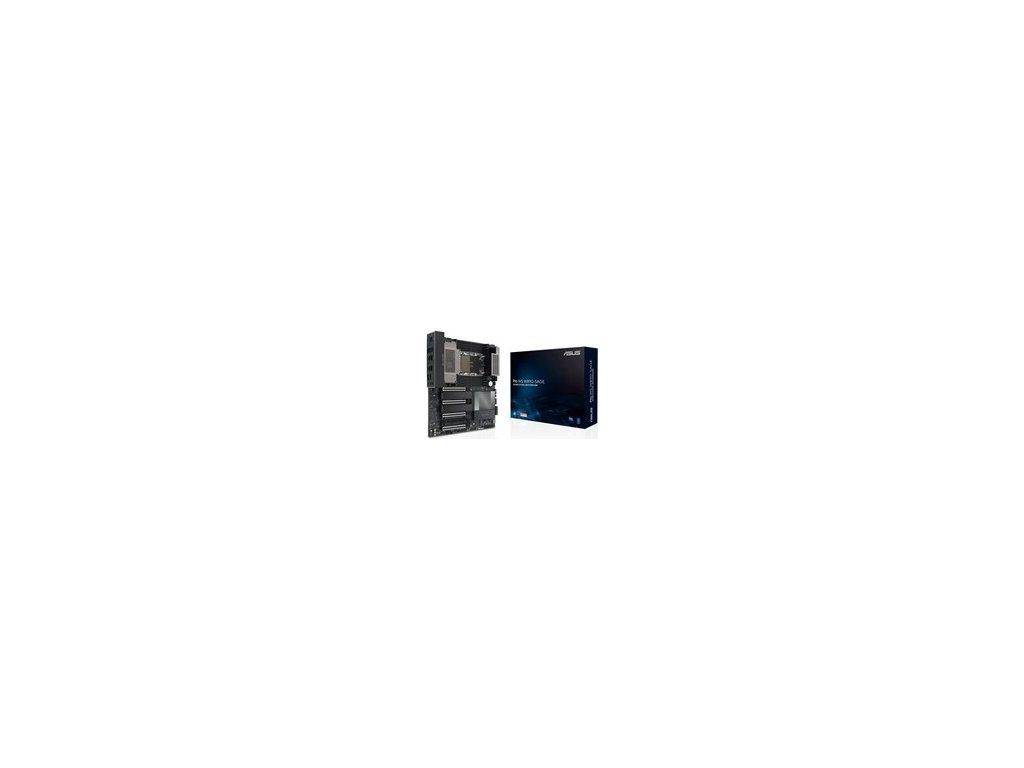

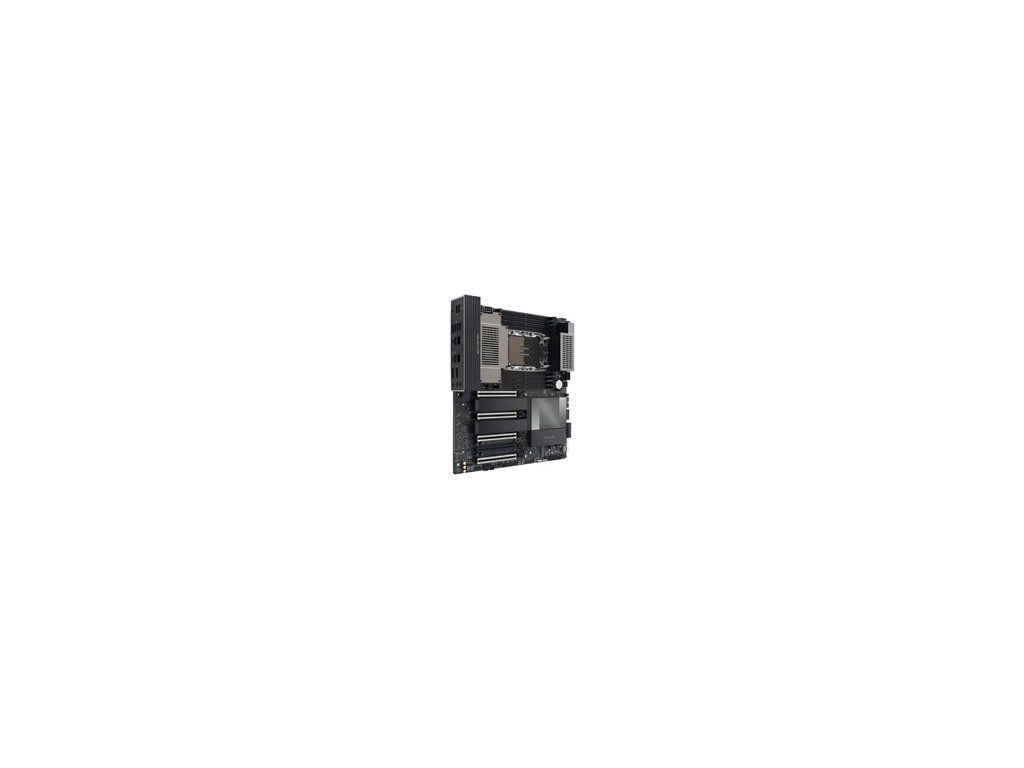

ASUS MB PRO WS W890-SAGE, Intel W890, 8xDDR5, 2xUSB-C, CEB

CPU

Intel Socket LGA4710-2 for Xeon 600 Processors for Workstation

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

* Refer to https://www.asus.com/support/download-center/ for CPU support list.

** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel W890 Chipset

Memory

8 x DIMM slots, DDR5, ECC Registered DIMM (RDIMM), 3DS-RDIMM, and Multiplexed Combined Rank DIMM (MRDIMM)*

4-channel memory architecture

Supports Intel Extreme Memory Profile (XMP) memory module

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.

Graphics

2 x USB 40Gbps (USB4) ports support USB Type-C display outputs*

* Supports max. 8K@60Hz as specified in DisplayPort 1.4.

** Output at USB4 Type-C 40G USB 1 or USB4 Type-C 40G USB 2 ports, each requires a DisplayPort IN to DisplayPort adapter cable.

For more information on display connection and video output configuration using the DisplayPort IN ports, please refer to the user manual.

*** The display function of the Type-C port depends on the resolution supported by your processor or graphics card. For more details, please refer to the product manual.

Expansion Slots

Intel Xeon 690/670/650/630 Series Processors*

4 x PCIe 5.0 x16 slots (supports x16 mode)

Intel W890 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

** CXL (Compute Express Link) is supported in PCIEX16(G5)_1, PCIEX16(G5)_2, PCIEX16(G5)_3, and PCIEX16(G5)_4

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Storage

Total supports 4 x M.2 slots, 2 x SlimSAS ports and 4 x SATA 6Gb/s ports

Intel Xeon 690/670/650/630 Series Processors*

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

Intel W890 Chipset

SlimSAS_1 connector supports PCIe 4.0 x4 mode

SlimSAS_2 connector supports PCIe 4.0 x4 mode or up to 4 SATA devices via an SFF-8654 adapter cable. The cable is purchased separately.

4 x SATA 6Gb/s ports

* Supports Intel Virtual RAID on CPU (Intel VROC) and Intel Volume Management Device (Intel VMD)

** Intel VROC Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. VROC_HW_Key is purchased separately.

Ethernet

1 x Realtek 10Gb Ethernet

1 x Intel 2.5Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth

M.2 slot only (Key E, CNVi & PCIe)*

* Wi-Fi module is sold separately.

USB

Rear USB (Total 10 ports)

2 x USB4 (40Gbps) ports (2 x USB Type-C)

6 x USB 10Gbps ports (6 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)

1 x USB 20Gbps connector (supports USB Type-C)*

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

* USB Type-C power delivery output: max. 5V/3A

Audio

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*

- Impedance sense for front and rear headphone outputs

- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

- Supports up to 32-Bit/192 kHz playback*

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

- Unique de-pop circuit

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

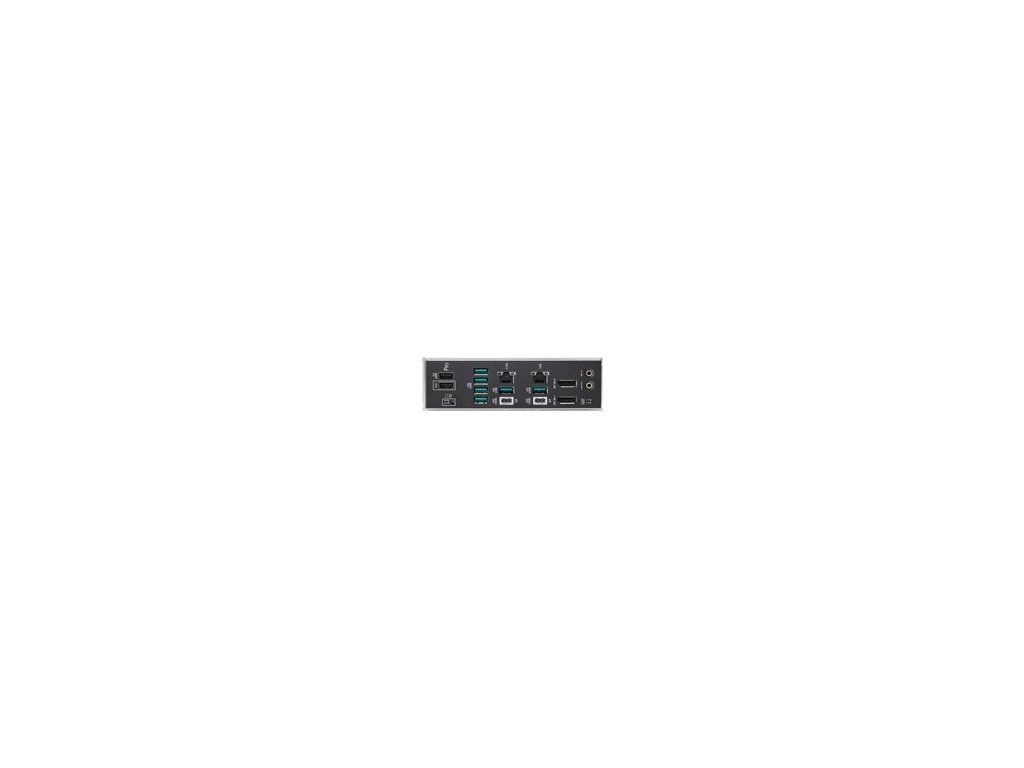

Back Panel I/O Ports

2 x USB4 (40Gbps) ports (2 x USB Type-C)

6 x USB 10Gbps ports (6 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x Realtek 10Gb Ethernet

1 x Intel 2.5Gb Ethernet

2 x Audio jacks

1 x BIOS FlashBack™ button

1 x Clear CMOS button

2 x DP IN ports

Internal I/O Connectors

Fan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

5 x 4-pin Chassis Fan headers

1 x W_PUMP+ header

1 x 4-pin VRM Fan header (with VRM fan onboard)

Power Related

1 x 24-pin Main Power connector

1 x 4-pin to 24-pin Main Power connectors

2 x 8-pin +12V CPU Power connector

2 x 8-pin PCIe to CPU power connectors

1 x 8-pin PCIe Power connector

Storage Related

4 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

2 x SlimSAS connector

USB

1 x USB 20Gbps connector (supports USB Type-C)*

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

2 x Addressable RGB Gen 2 header(s)

1 x Chassis Intrusion header

1 x COM Port header

1 x CPU Over voltage jumper

1 x FlexKey button

1 x Front Panel Audio header (F_AUDIO)

1 x M.2 slot (Key E)

1 x ReTry button

2 x RSVD header(s)/switch(es)

1 x Safe Boot button

1 x Slow Mode switch

1 x Start button

1 x 10-1 pin Front Panel System header

1 x VROC header

1 x Thermal Sensor header

Special Features

ASUS 5X PROTECTION III

- DIGI+ VRM (- Digital power design with DrMOS)

- ESD Guards

- LANGuard

- Overvoltage protection

- SafeSlot

- Stainless-steel back I/O

ASUS Q-Design

- M.2 Q-Latch

- M.2 Q-Release

- M.2 Q-Slide

- PCIe Slot Q-Release Slim (with PCIe SafeSlot)

- Q-Code

- Q-Connector

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink backplate

- M.2 heatsink

- Steel backplate

- VRM heatsink design

- Fan-based active cooling design for VRM heatsink

ASUS EZ DIY

- Backplate

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- Clear CMOS button

- Dual DIMM clips

- ProCool II

- Pre-mounted I/O shield

- SafeSlot

- SafeDIMM

Aura Sync

- Addressable RGB Gen 2 headers

Bespoke Motherboard Design & Business Focused Features

- 24/7 reliability

- Overcurrent protection

Software Features

ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

- Fan Xpert 4

ASUS DriverHub

- ASUS CPU-Z

Adobe Creative Cloud (Free Trial)**

Norton 360 for Deluxe (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUSTeK. EzFlash Utility

FlexKey

* For more software features, please visit the asus support site or refer to www.asus.com/support for additional information.

** For detailed information on the supported models and restricted regions for this redemption offer, please refer to https://www.asus.com/content/asus-offers-adobe-creative-cloud/.

Remote Management Features

IT Management software supported

- ASUS Control Center Express (ACCE)

Intel W890 Chipset

Intel vPro

Ready for IPMI Expansion Card*

1 x BMC header

* IPMI Expansion Card is sold separately.

BIOS

512 Mb Flash ROM, UEFI AMI BIOS(text-based)

Manageability

WOL by PME, PXE

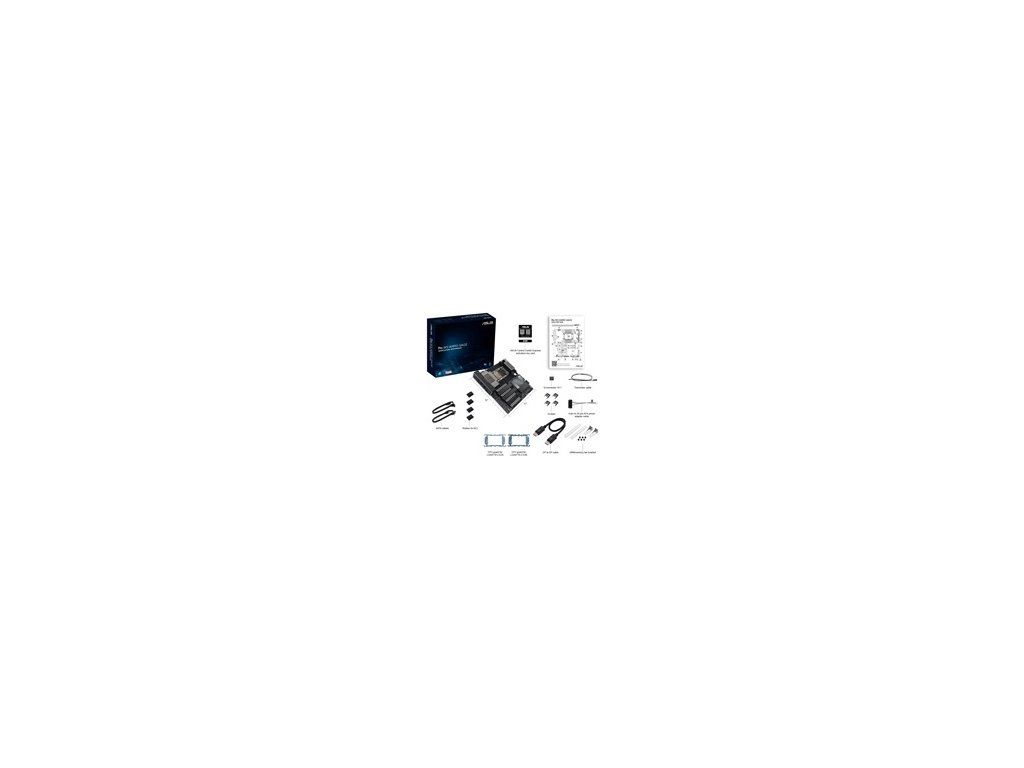

Accessories

Cables

2 x SATA 6Gb/s cables

1 x Thermistor cable pack

1 x DisplayPort cable

1 x 4-pin to 24-pin adapter cable for ATX power connector

Additional Cooling Kit

1 x detachable VRM/memory fan bracket kit

Miscellaneous

1 x Q-connector

2 x M.2 Q-Slide package

2 x M.2 backplate rubber packages

1 x Screw package for M.2 Key E

1 x E2A CPU carrier (for Intel Xeon 690 Series Processors)

1 x E2B CPU carrier (for Intel Xeon 670/650/630 Series Processors)

Documentation

1 x ACC Express activation key card

1 x Quick start guide

Operating System

Windows 11

Form Factor

CEB Form Factor

12 inch x 11 inch (30.5 cm x 28 cm)
