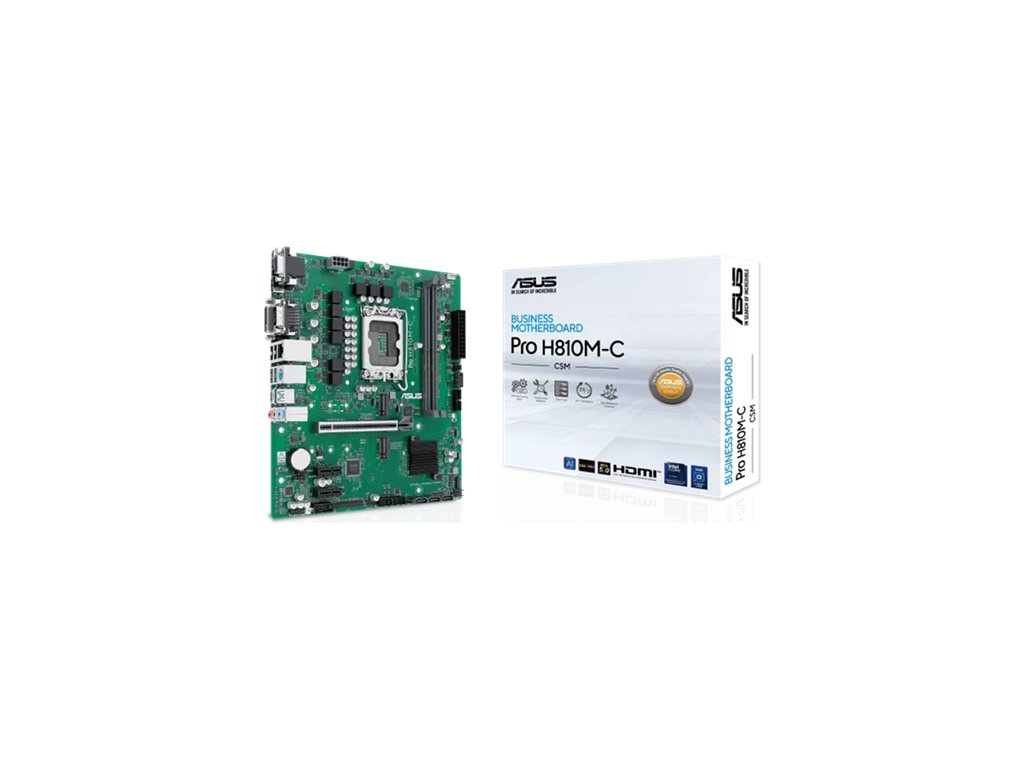

ASUS PRO H810M-C-CSM, LGA1851, 2xDDR5, 1xDP, 1xHDMI, 1xVGA, 1xDVI-D, mATX

Podrobný popis

ASUS PRO H810M-C-CSM

* mATX Form Factor

CPU: Supports Intel® Core™ Ultra Processors (Series 2), LGA1851 - Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset: Intel H810 Chipset

Paměť: 2 x DIMM slots, max. 128GB, DDR5

*Supports up to 6400MT/s, Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)

*Dual channel memory architecture

*DIMM Fit

*Supports Intel® Extreme Memory Profile (XMP) memory module

*ASUS Enhanced Memory Profile II (AEMP II)

Grafické porty:

*1 x DisplayPort

*1 x VGA port

*1 x DVI-D port

*1 x HDMI™ port

Rozšiřující sloty:

Intel® Core™ Ultra Processors (Series 2)

*1 x PCIe 5.0 x16 slot

Intel® H810 Chipset

*2 x PCIe 4.0 x1 slots

Úložný prostor:

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® H810 Chipset

*M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

*M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)

*4 x SATA 6Gb/s ports

Ethernet:

*1 x Intel® 1Gb Ethernet port

*ASUS LANGuard

USB:

Zadní USB (Total 7 ports)

*2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)

*2 x USB 5Gbps ports (2 x Type-A)

*2 x USB 2.0 ports (2 x Type-A)

Přední USB (Total 7 ports)

*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

*2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC*

*Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

*Supports up to 24-Bit/192 kHz playback

Vstupy/výstupy zadního panelu:

*2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)

*2 x USB 5Gbps ports (2 x Type-A)

*2 x USB 2.0 ports (2 x Type-A)

*1 x DisplayPort

*1 x VGA port

*1 x DVI-D port

*1 x HDMI™ port

*1 x Intel® 1Gb Ethernet port

*3 x Audio jacks

*1 x COM port

*1 x PS/2 keyboard/mouse combo port

Interní vstupy/výstupy:

Ventilátory a chlazení:

*1 x 4-pin CPU Fan header

*2 x 4-pin Chassis Fan headers

Napájení:

*1 x 24-pin Main Power connector

*1 x 8-pin +12V CPU Power connector

Úložiště:

*2 x M.2 slots (Key M)

*4 x SATA 6Gb/s ports

USB:

*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

*2 x USB 2.0 headers support 4 additional USB 2.0 ports

Různé:

*1 x Clear CMOS header

*1 x Chassis Intrusion header

*1 x COM Port header

*1 x Front Panel Audio header (F_AUDIO)

*1 x COM Debug header

*1 x LPT header

*1 x Mono-Out Audio header (with Amp IC)

*1 x SMBUS header

*1 x Speaker header

*1 x SPI TPM header (14-1 pin)

*1 x 10-1 pin Front Panel System header

Příslušenství:

Kabely:

*2 x SATA 6Gb/s cables

Různé:

*1 x I/O shield

*1 x M.2 anchor package

Dokumenty:

*1 x ACC Express activation key card

*1 x Quick start guide
