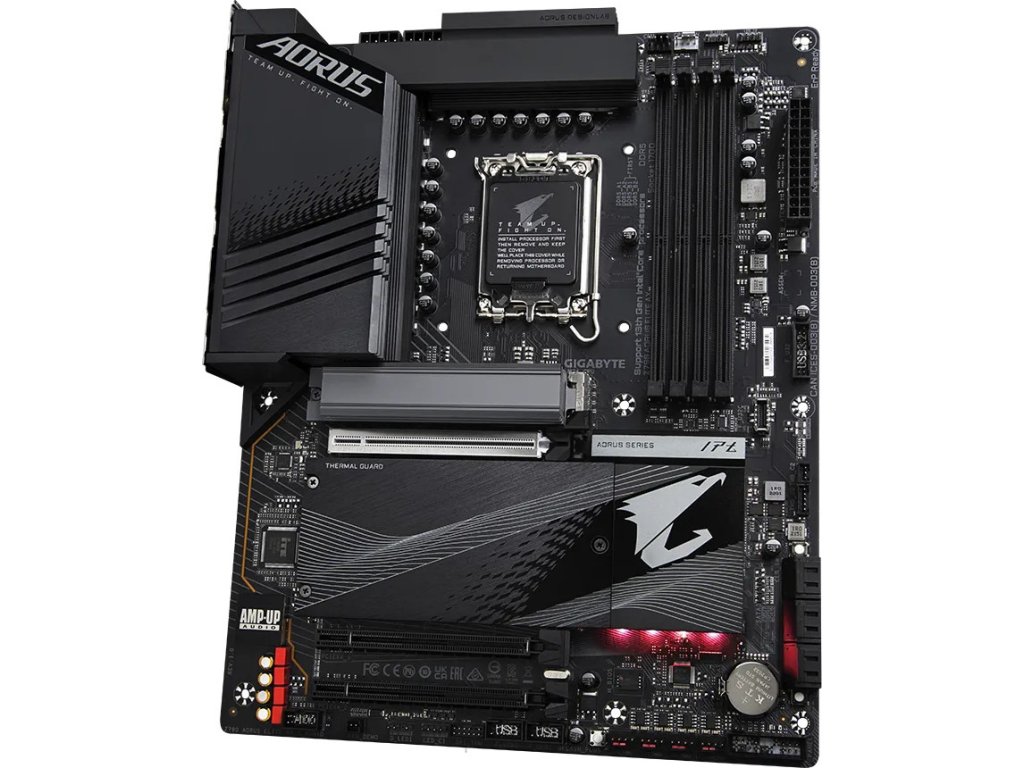

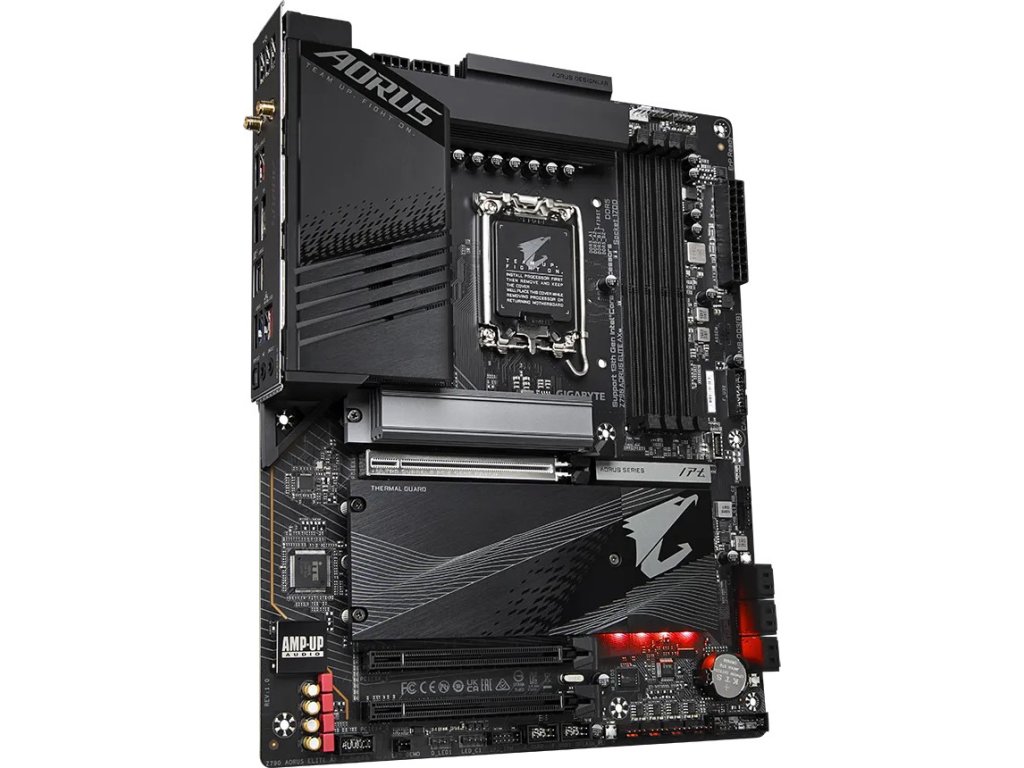

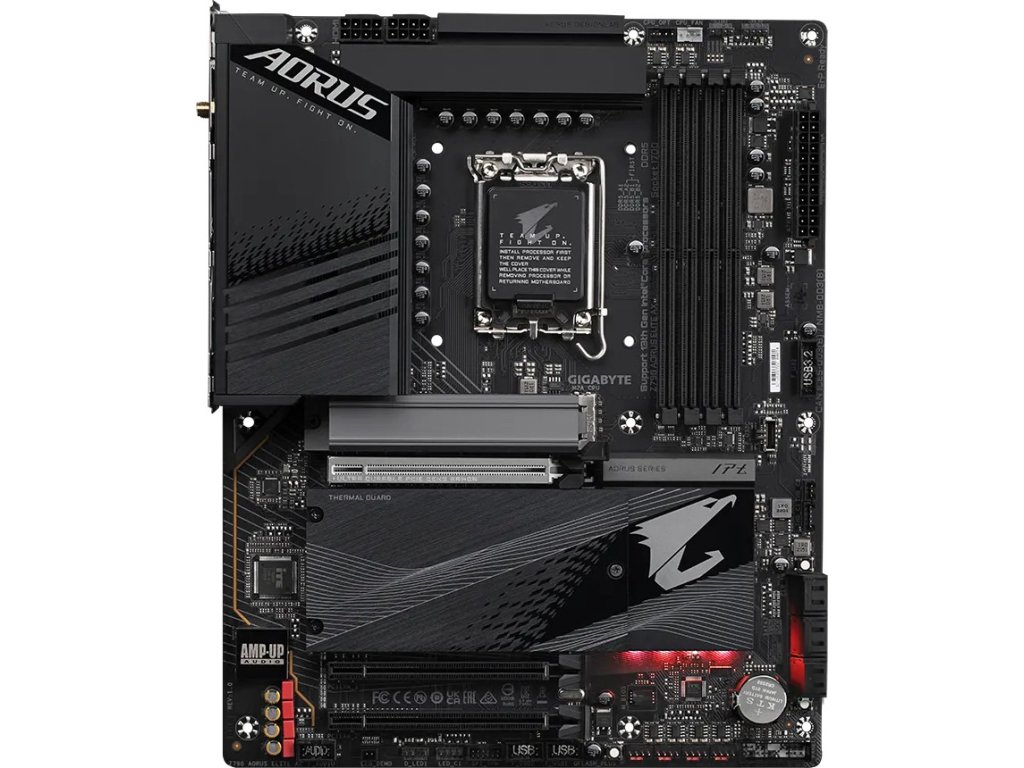

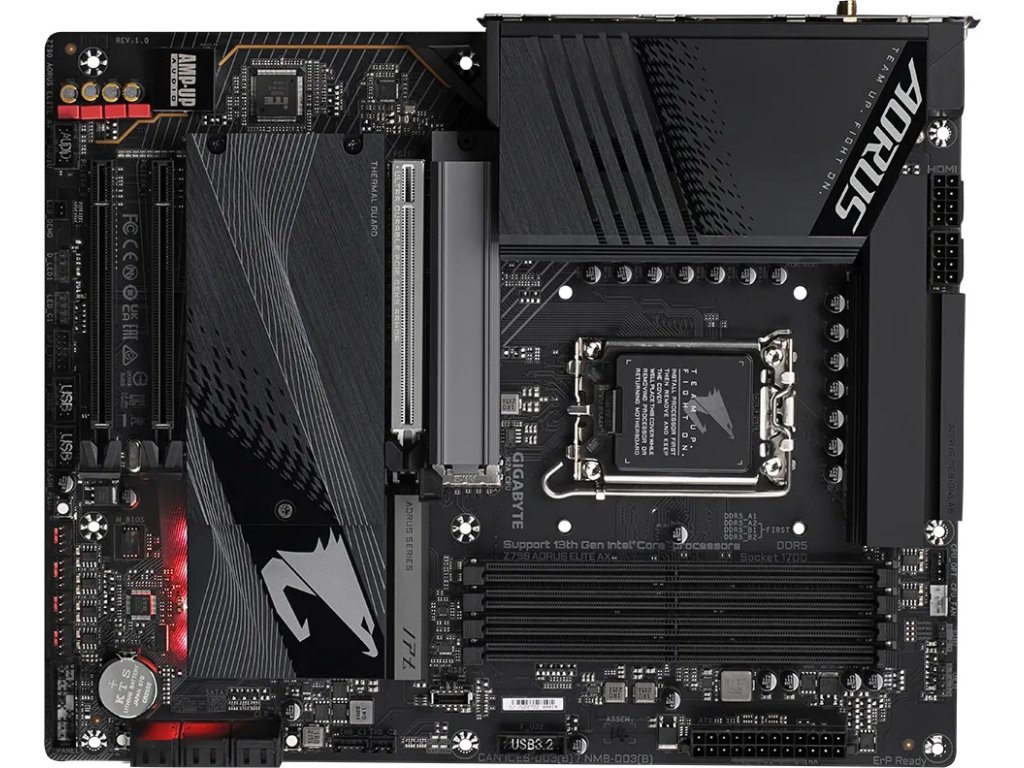

GIGABYTE Z790 AORUS ELITE AX, LGA1700, Intel Z790, 4xDDR5, 1xDP, 1xHDMI, WI-FI

Podrobný popis

Chipset: Intel Z790 Express Chipset

Rozměrový formát: ATX Form Factor; (30.5cm x 24.4cm)

Podpora pro procesory: 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors

Patice procesoru: LGA 1700

Pozice na paměti: 4 x DDR DIMM sockets, Dual channel memory architecture

Podpora pro paměti: DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules

Max.velikost operační paměti: 128 GB (32 GB single DIMM capacity)

Podpora pro paměti typu: ECC, non-ECC, XMP

Grafické výstupy: (Intel HD Graphics)

*1 x HDMI 2.0 port, maximální rozlišení 4096x2160@60 Hz

*1 x DisplayPort 1.2, maximální rozlišení 4096x2304@60

Zvuková karta: Realtek Audio CODEC

*2/4/5.1/7.1-channel

*Podpora S/PDIF Out

Síťová karta:

*Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

*Intel Wi-Fi 6E AX211 a, b, g, n, ac, ax

*Bluetooth 5.3

Rozšiřující sloty:

*1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

*2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)

RAID řadič: RAID 0, RAID 1, RAID 5, and RAID 10

SATA: 6 x SATA 6Gb/s connectors

M.2: 4 x M.2 Socket 3 connectors

USB:

*Interní:

*1 x USB Type-C header, with USB 3.2 Gen 2 support

*1 x USB 3.2 Gen 1 header

*2 x USB 2.0/1.1 headers

*Externí:

*1 x USB Type-C port, with USB 3.2 Gen 2x2 support

*2 x USB 3.2 Gen 2 Type-A ports (red)

*3 x USB 3.2 Gen 1 ports

*4 x USB 2.0/1.1 ports

Interní porty:

*1 x 24-pin ATX main power connector

*2 x 8-pin ATX 12V power connectors

*1 x CPU fan header

*1 x water cooling CPU fan header

*3 x system fan headers

*1 x system fan/water cooling pump header

*2 x addressable LED strip headers

*2 x RGB LED strip headers

*4 x M.2 Socket 3 connectors

*6 x SATA 6Gb/s connectors

*1 x front panel header

*1 x front panel audio header

*1 x USB Type-C header, with USB 3.2 Gen 2 support

*1 x USB 3.2 Gen 1 header

*2 x USB 2.0/1.1 headers

*2 x Thunderbolt add-in card connectors

*1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

*1 x reset button

*1 x Q-Flash Plus button

*1 x Clear CMOS button

*1 x reset jumper

*1 x Clear CMOS jumper

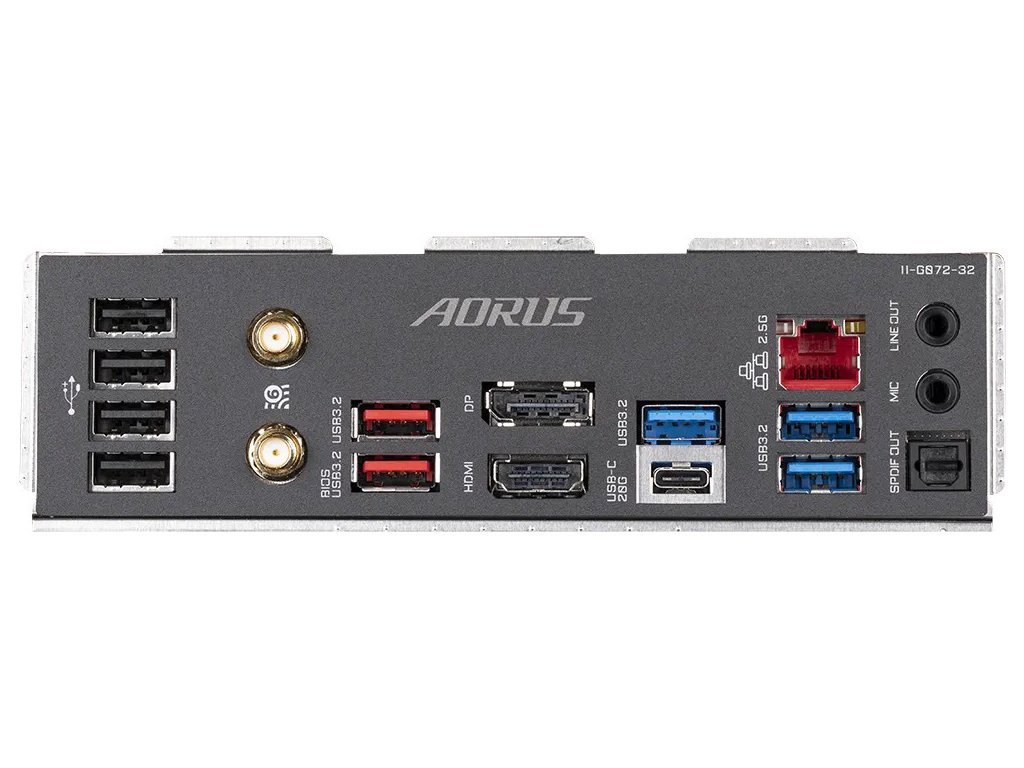

Externí porty:

*1 x USB Type-C port, with USB 3.2 Gen 2x2 support

*2 x USB 3.2 Gen 2 Type-A ports (red)

*3 x USB 3.2 Gen 1 ports

*4 x USB 2.0/1.1 ports

*2 x SMA antenna connectors (2T2R)

*1 x HDMI 2.0 port

*1 x DisplayPort

*1 x RJ-45 port

*1 x optical S/PDIF Out connector

*2 x audio jacks

BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash

Stránka výrobce: http://www.gigabyte.com/Motherboard/Z790-AORUS-ELITE-AX-rev-10#kf
