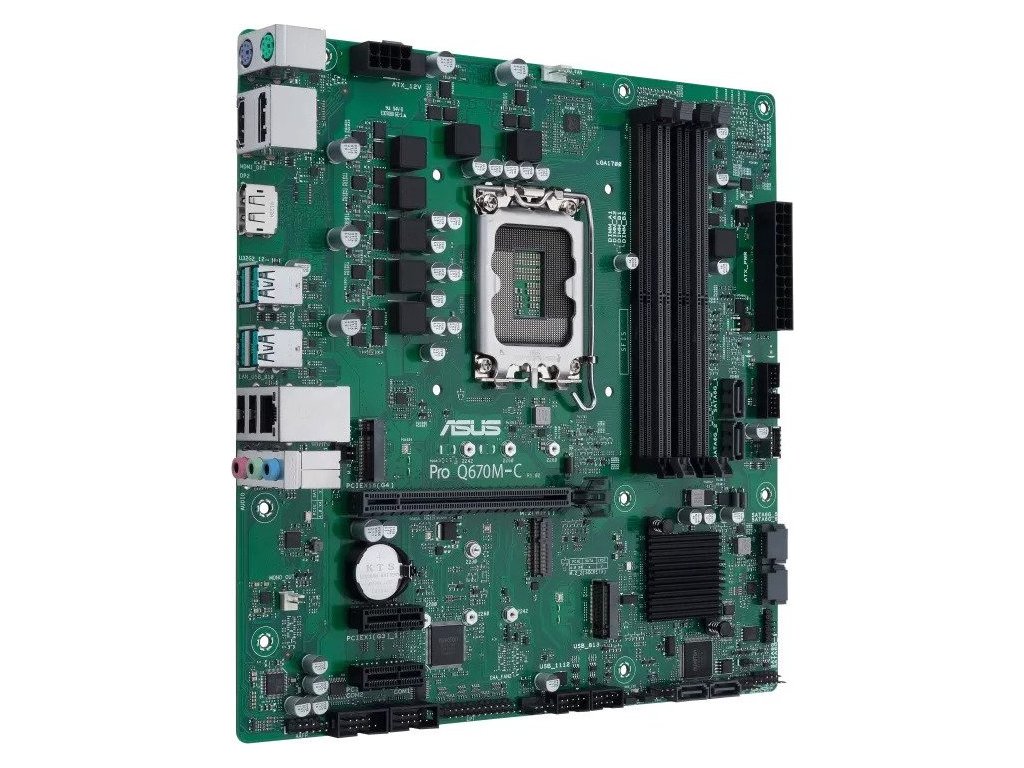

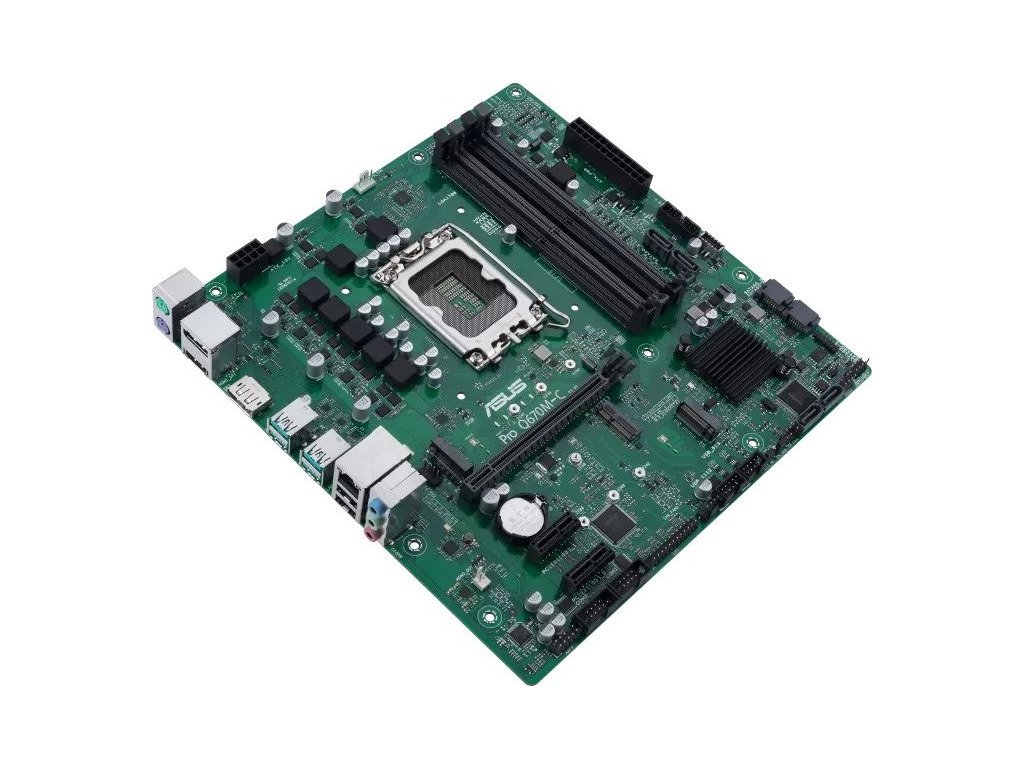

ASUS MB Sc LGA1700 PRO Q670M-C-CSM, Intel Q670, 4xDDR5, 2xDP, 1xHDMI, mATX

Podrobný popis

Chipset: Intel Q670 Chipset

Rozměrový formát: mATX Form Factor (24.4 cm x 24.4 cm)

Podpora pro procesory: 12th Gen Intel Core, Pentium Gold and Celeron Processors

Patice procesoru: LGA 1700

Pozice na paměti: 4 x DIMM, Dual Channel Memory Architecture

Podpora pro paměti: DDR5 4800 MHz

Max.velikost operační paměti: 128 GB

Podpora pro paměti typu: XMP

Grafické výstupy: (na základě procesoru)

*2 x DisplayPort 1.4

*1 x HDMI port 2.1

Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC

Síťová karta: 1 x Intel I219LM 1Gb Ethernet

Rozšiřující sloty:

*1 x PCIe 4.0 x16 slot

*2 x PCIe 3.0 x1 slots

RAID řadič:

*NVMe RAID 0/1/5

*SATA RAID 0/1/5/10.

SATA: 6 x SATA 6Gb/s ports

M.2: 2 x M.2 slots (Key M)

USB:

*Interní:

*1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C)

*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

*2 x USB 2.0 headers support additional 4 USB 2.0 ports

*Externí :

*4 x USB 3.2 Gen 2 ports (4 x Type-A)

*2x USB 2.0 ports (2 x Type-A)

Interní porty:

*Fan and cooling related

*1 x 4-pin CPU Fan header

*2 x 4-pin Chassis Fan headers

*Power related

*1 x 24-pin Main Power connector

*1 x 8-pin +12V Power connector

*Storage related

*2 x M.2 slots (Key M)

*6 x SATA 6Gb/s ports

*USB

*1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C®)

*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

*2 x USB 2.0 headers support additional 4 USB 2.0 ports

*Miscellaneous

*1 x Clear CMOS header

*1 x Chassis Intrude header

*2 x COM Port headers

*1 x Front Panel Audio header (AAFP)

*1 x COM debug header

*1 x DIS ME jumper

*1 x LPT header

*1 x Mono-out header(with Amp IC)

*1 x M.2 slot (Key E)

*1 x Speaker header

*1 x 10-1 System Panel header

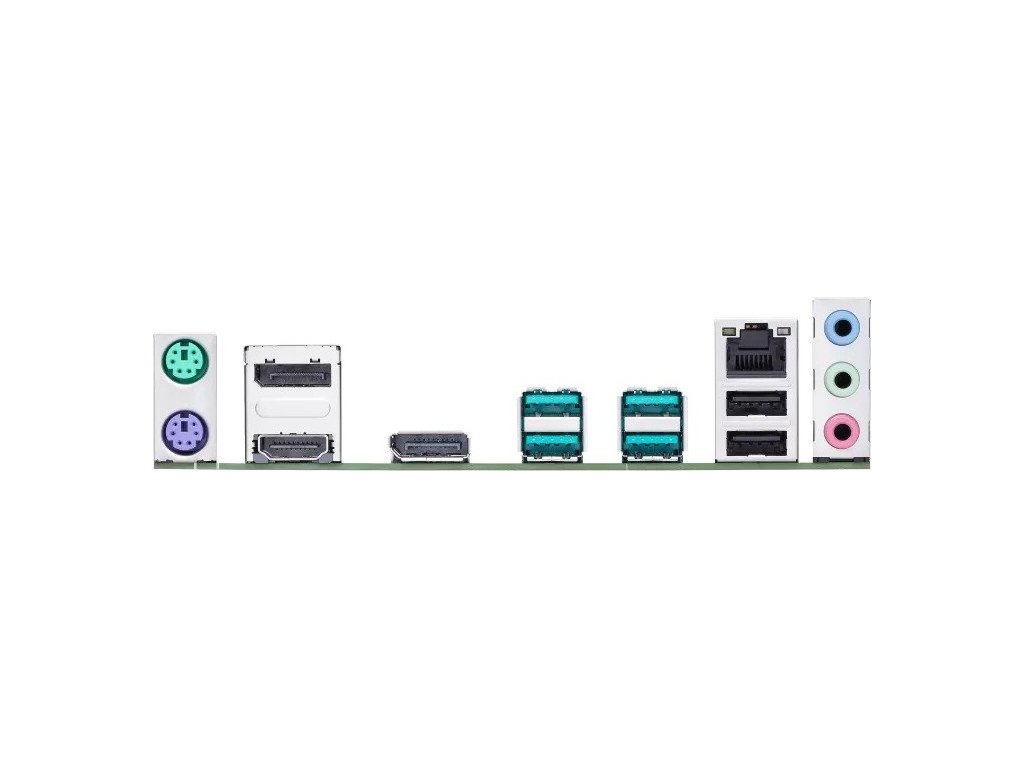

Externí porty:

*4 x USB 3.2 Gen 2 ports (4 x Type-A)

*2x USB 2.0 ports (2 x Type-A)

*2 x DisplayPort

*1 x HDMI port

*3 x Audio jacks

*1 x Intel 1Gb Ethernet

*1 x PS/2 keyboard (purple) port

*1 x PS/2 mouse (green) port

BIOS: 256 Mb Flash ROM
