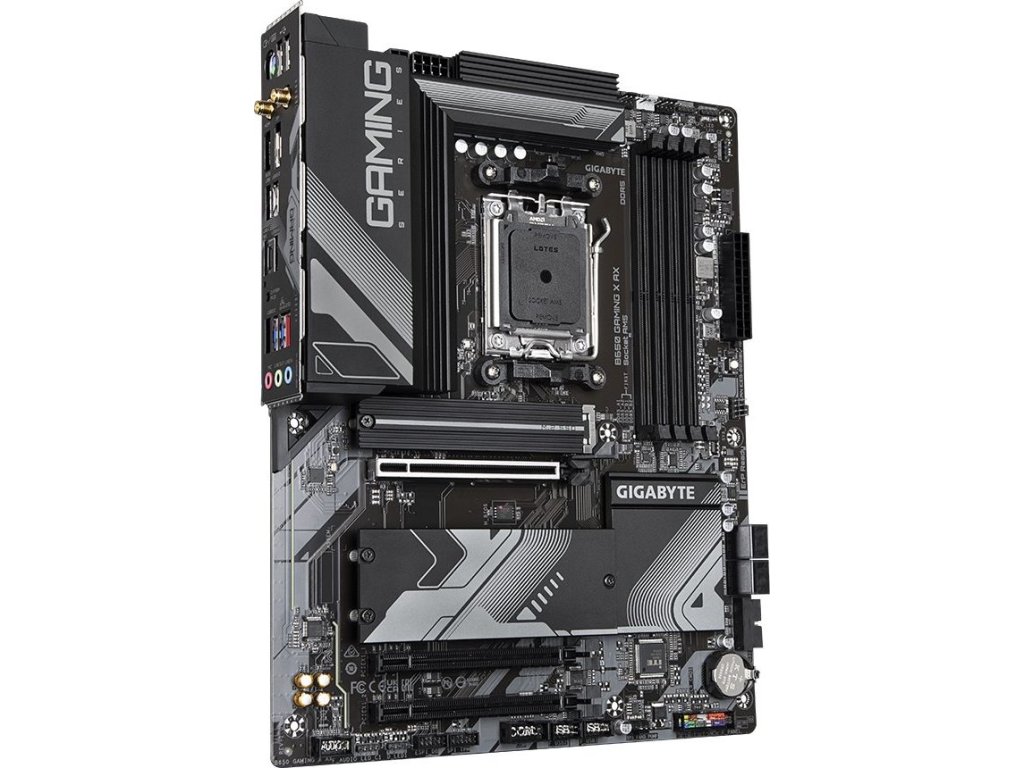

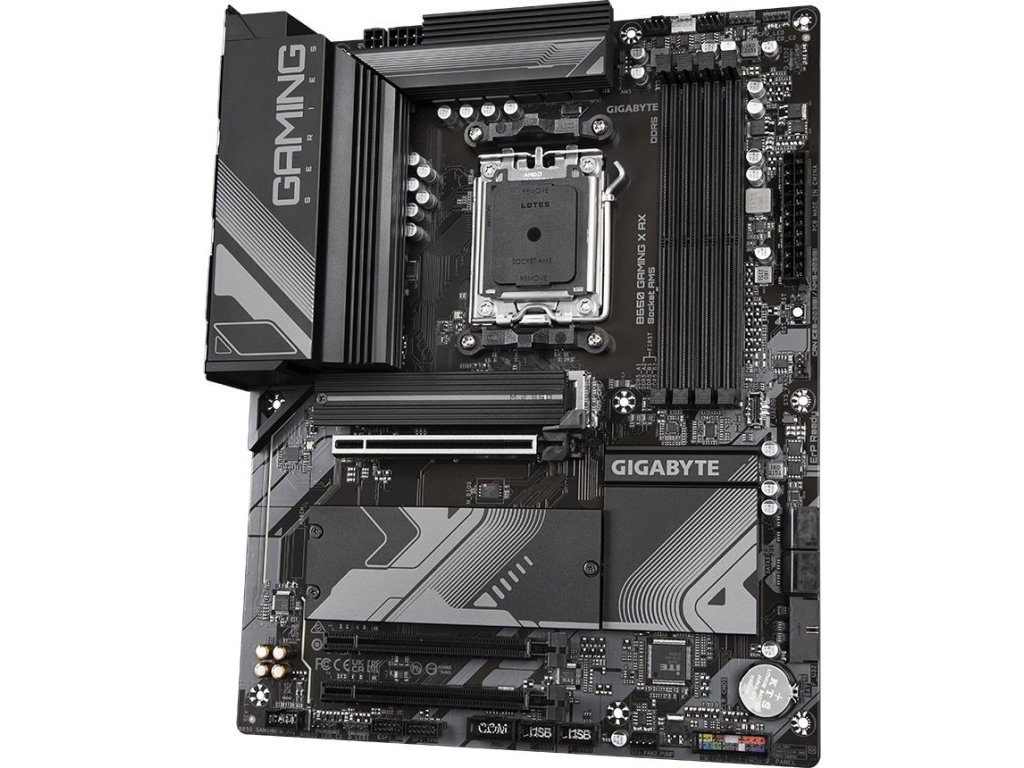

GIGABYTE MB Sc AM5 B650 GAMING X AX, AMD B650, 4xDDR5, 1xDP, 1xHDMI, WI-FI

Podrobný popis

Chipset: AMD B650

Rozměrový formát: ATX Form Factor, (30.5cm x 24.4cm)

Podpora pro procesory: AMD Ryzen 7000 Series Processors

Patice procesoru: AM5

Pozice na paměti: 4 x DDR5 DIMM, Dual channel memory architecture

Podpora pro paměti: DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules

Max.velikost operační paměti: 128 GB (32 GB single DIMM capacity)

Podpora pro paměti typu: non-ECC, XMP

Grafické výstupy: (na základě procesoru)

*1 x DisplayPort 1.4, maximální rozlišení 3840x2160@144 Hz

*1 x HDMI 2.1 port, maximální rozlišení 4096x2160@60 Hz

Zvuková karta: Realtek Audio CODEC

*2/4/5.1/7.1-channel

Síťová karta:

*Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

*AMD Wi-Fi 6E RZ616 a, b, g, n, ac, ax

*Bluetooth 5.2

Rozšiřující sloty:

*1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

*2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)

RAID řadič: RAID 0, RAID 1, and RAID 10

SATA: 4 x SATA 6Gb/s connectors

M.2: 3 x M.2 Socket 3 connectors

USB:

*Interní:

*1 x USB Type-C header, with USB 3.2 Gen 2x2 support

*1 x USB 3.2 Gen 1 header

*2 x USB 2.0/1.1 headers

*Externí:

*1 x USB Type-C port, with USB 3.2 Gen 2 support

*1 x USB 3.2 Gen 2 Type-A port (red)

*3 x USB 3.2 Gen 1 ports

*3 x USB 2.0/1.1 ports

Interní porty:

*1 x 24-pin ATX main power connector

*1 x 8-pin ATX 12V power connector

*1 x 4-pin ATX 12V power connector

*1 x CPU fan header

*1 x water cooling CPU fan header

*2 x system fan headers

*1 x system fan/water cooling pump header

*2 x addressable LED strip headers

*2 x RGB LED strip headers

*1 x CPU cooler LED strip/RGB LED strip header

*3 x M.2 Socket 3 connectors

*4 x SATA 6Gb/s connectors

*1 x front panel header

*1 x front panel audio header

*1 x USB Type-C header, with USB 3.2 Gen 2x2 support

*1 x USB 3.2 Gen 1 header

*2 x USB 2.0/1.1 headers

*1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

*1 x serial port header

*1 x reset button

*1 x reset jumper

*1 x Clear CMOS jumper

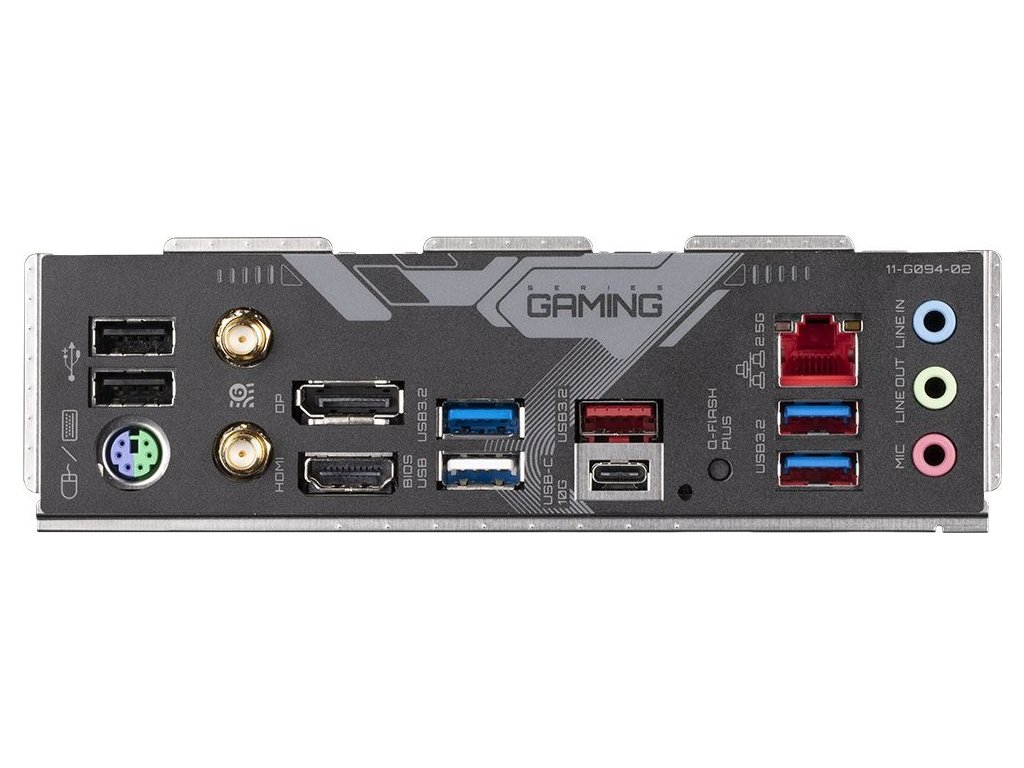

Externí porty:

*2 x SMA antenna connectors (2T2R)

*1 x Q-Flash Plus button

*1 x DisplayPort

*1 x HDMI port

*1 x USB Type-C port, with USB 3.2 Gen 2 support

*1 x USB 3.2 Gen 2 Type-A port (red)

*3 x USB 3.2 Gen 1 ports

*3 x USB 2.0/1.1 ports

*1 x RJ-45 port

*3 x audio jacks

BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash

Stránka výrobce: http://www.gigabyte.com/Motherboard/B650-GAMING-X-AX-rev-1x#kf
