ASUS TUF GAMING B850-PLUS WIFI, AM5, AMD B850, 4xDDR5, 1xDP, 1xHDMI, WiFi, ATX

Podrobný popis

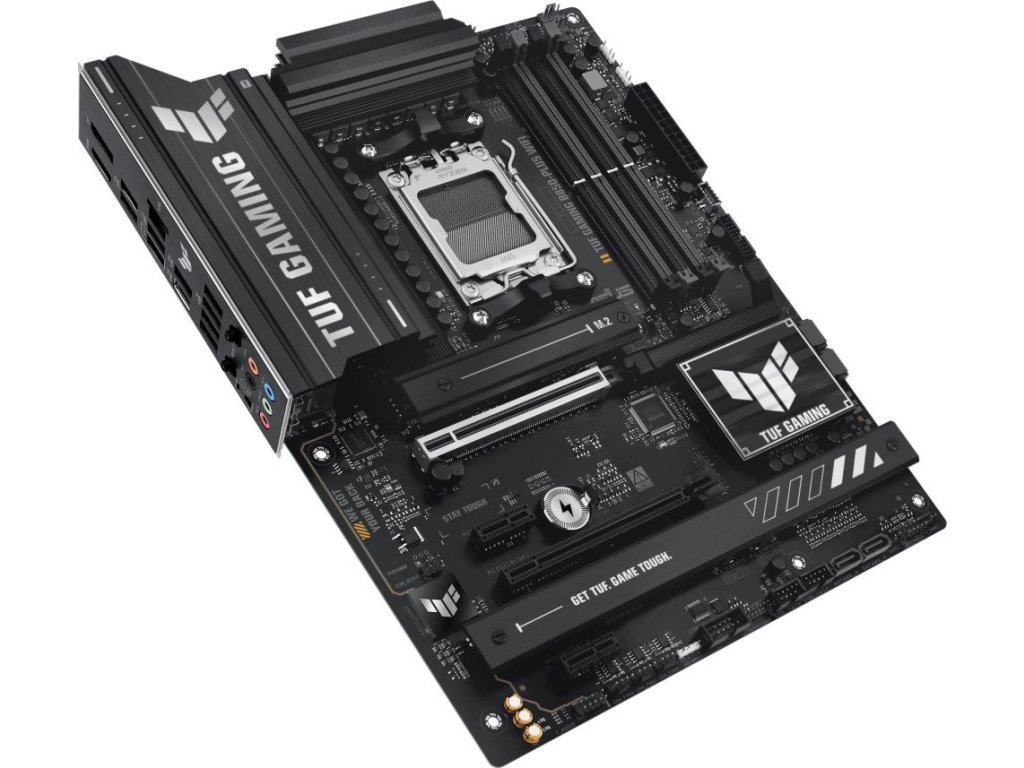

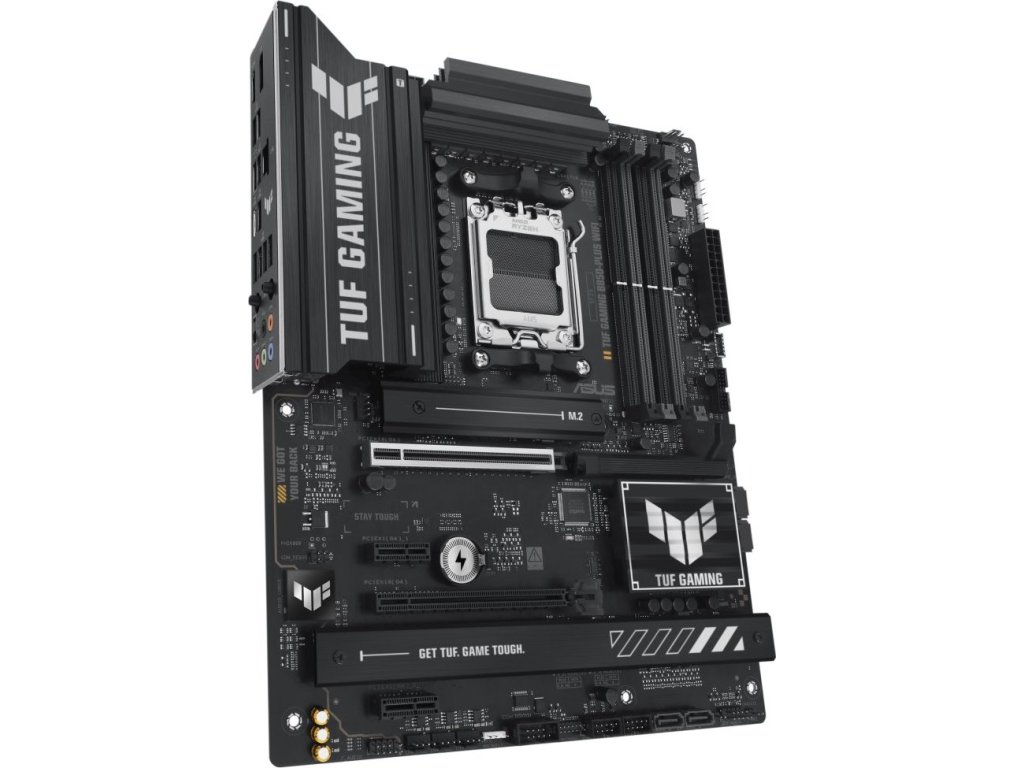

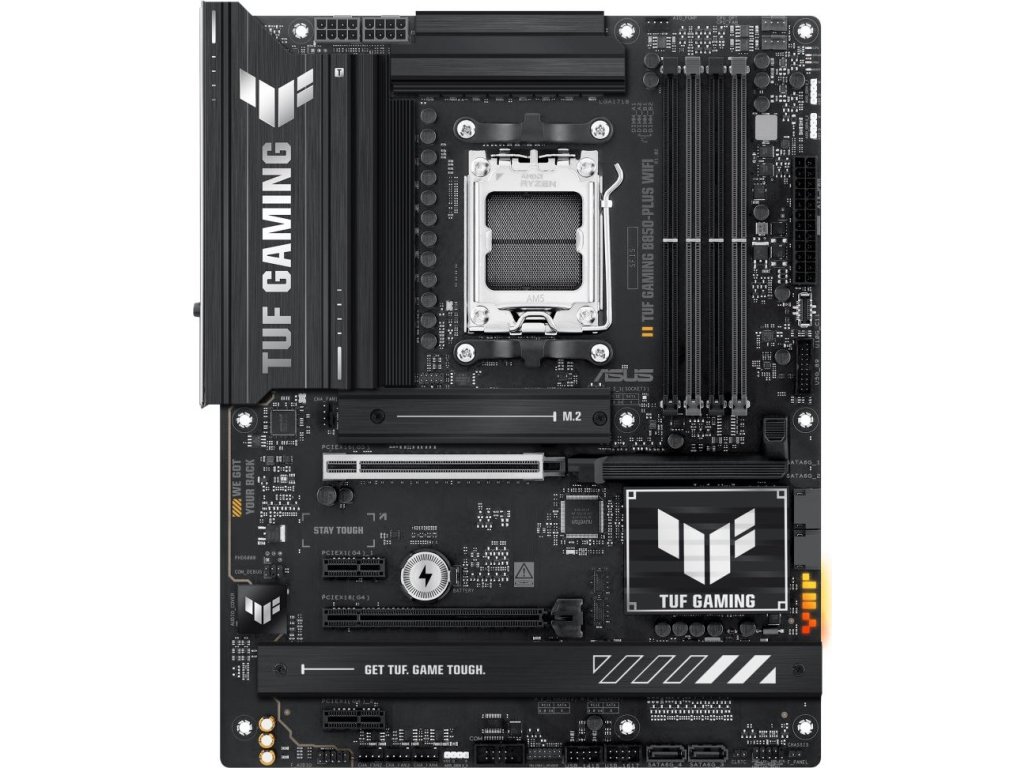

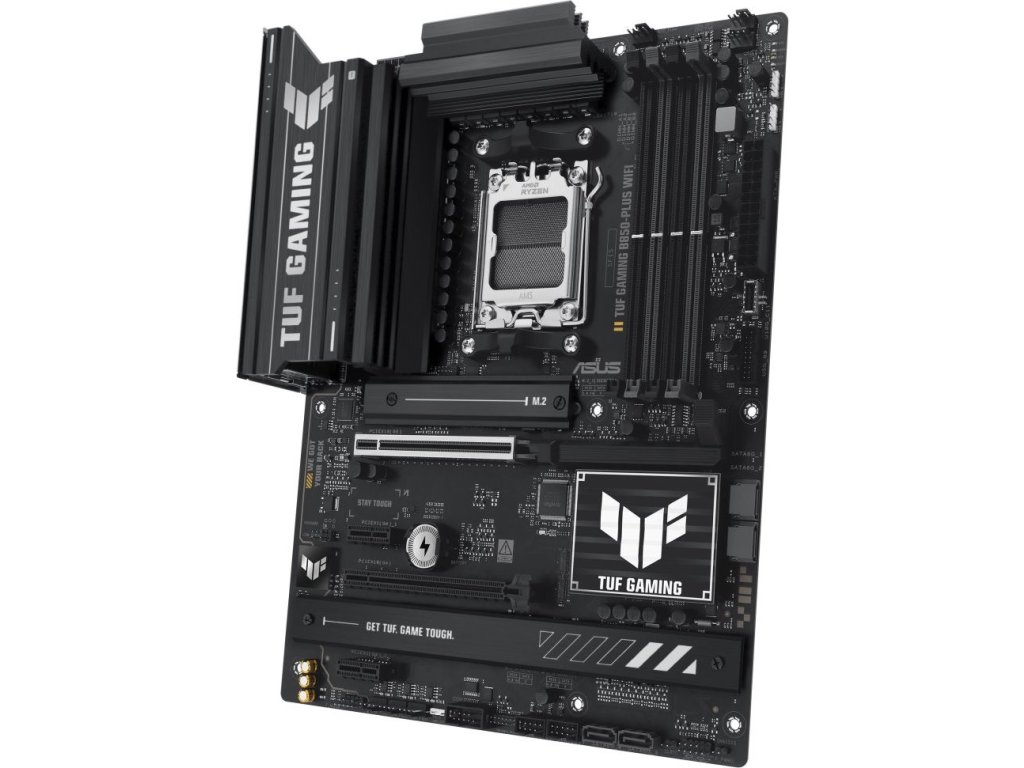

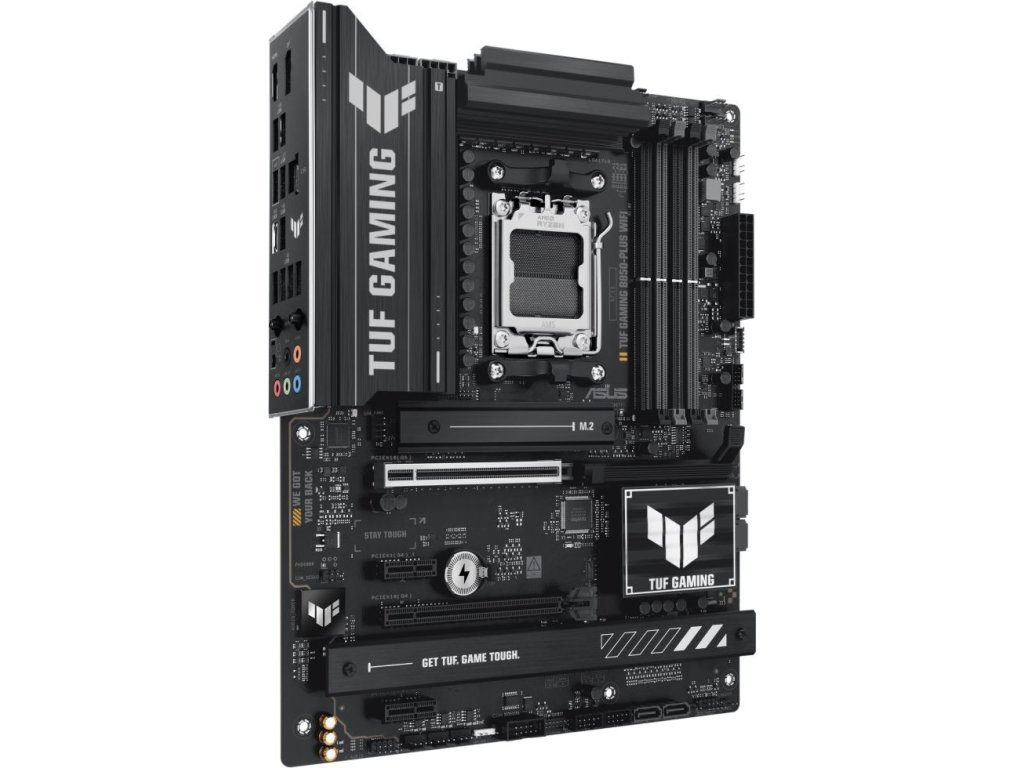

ASUS TUF GAMING B850-PLUS WIFI

* ATX Form Factor

CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset: AMD B850 Chipset

Paměť:

*4 x sloty DIMM, max. 192 GB, DDR5 - Podporuje až 8000+MT/s (OC) s procesory Ryzen™ řady 9000 a 8000 a 7000, ECC a Non-ECC Un-buffered DIMM

*Dvoukanálová paměťová architektura

*Podpora rozšířených profilů AMD pro přetaktování (EXPO™)

*ASUS Enhanced Memory Profile (AEMP)

Grafické porty:

*1 x DisplayPort

*1 x HDMI™ port

Rozšiřující sloty:

AMD Ryzen™ 9000 & 7000 Series Desktop Processors

*1 x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen™ 8000 Series Desktop Processors

*1 x PCIe 4.0 x16 slot (supports x8/x4 mode)

AMD B850 Chipset

*1 x PCIe 4.0 x16 slot (supports x4 mode)

*2 x PCIe 4.0 x1 slots

Úložný prostor:

Total Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

AMD Ryzen™ 9000 & 7000 Series Desktop Processors

*M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

*M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

AMD Ryzen™ 8000 Series Desktop Processors

*M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

*M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)

AMD B850 Chipset

*M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

*4 x SATA 6Gb/s ports

Ethernet:

*1 x Realtek 2.5Gb Ethernet

*TUF LANGuard

Připojení a Bluetooth:

*Wi-Fi 7

*2x2 Wi-Fi 7 (802.11be)

*Supports 2.4/5/6GHz frequency band**

*Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate

*Bluetooth® v5.4***

USB:

Zadní USB (Total 10 ports)

*1 x USB 20Gbps port (1 x USB Type-C®)

*3 x USB 10Gbps ports (3 x Type-A)

*4 x USB 5Gbps ports (4 x Type-A)

*2 x USB 2.0 ports (2 x Type-A)

Přední USB (Total 7 ports)

*1 x USB 10Gbps connector (supports USB Type-C®)

*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

*2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio:

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

*Audio Shielding

*Premium audio capacitors

*Dedicated audio PCB layers

*Audio cover

*Unique de-pop circuit

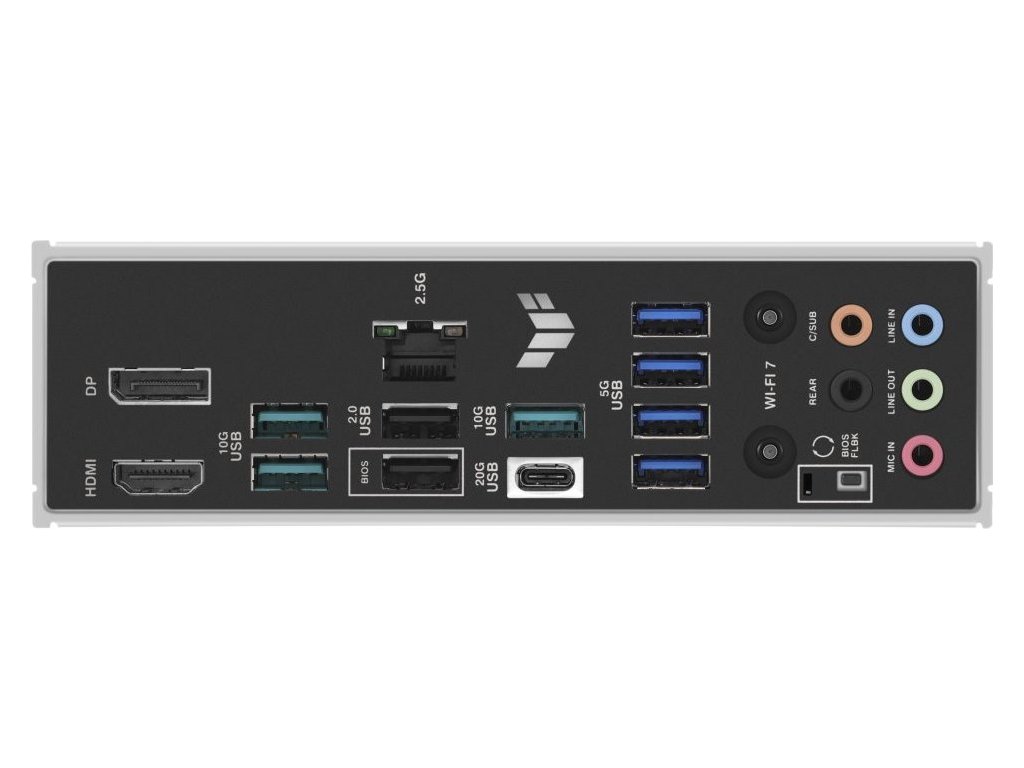

Vstupy/výstupy zadního panelu:

*1 x USB 20Gbps port (1 x USB Type-C®)

*3 x USB 10Gbps ports (3 x Type-A)

*4 x USB 5Gbps ports (4 x Type-A)

*2 x USB 2.0 ports (2 x Type-A)

*1 x DisplayPort

*1 x HDMI™ port

*1 x Wi-Fi module

*1 x Realtek 2.5Gb Ethernet port

*5 x Audio jacks

*1 x BIOS FlashBack™ button

Interní vstupy/výstupy:

Ventilátory a chlazení:

*1 x 4-pin CPU Fan header

*1 x 4-pin CPU OPT Fan header

*1 x 4-pin AIO Pump header

*4 x 4-pin Chassis Fan headers

Napájení:

*1 x 24-pin Main Power connector

*2 x 8-pin +12V CPU Power connectors

Úložiště:

*3 x M.2 slots (Key M)

*4 x SATA 6Gb/s ports

USB:

*1 x USB 10Gbps connector (supports USB Type-C® )

*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

*2 x USB 2.0 headers support 4 additional USB 2.0 ports

Různé:

*3 x Addressable Gen 2 headers

*1 x Clear CMOS header

*1 x Chassis Intrusion header

*1 x COM Port header

*1 x Front Panel Audio header (F_AUDIO)

*1 x 10-1 pin Front System Panel header

*1 x Thunderbolt™ (USB4®) header

Příslušenství:

Kabely:

*2 x SATA 6Gb/s cables

Různé:

*1 x ASUS WiFi Q-Antenna

*1 x TUF GAMING sticker

*2 x M.2 rubber packages

Dokumenty:

*1 x Quick start guide
