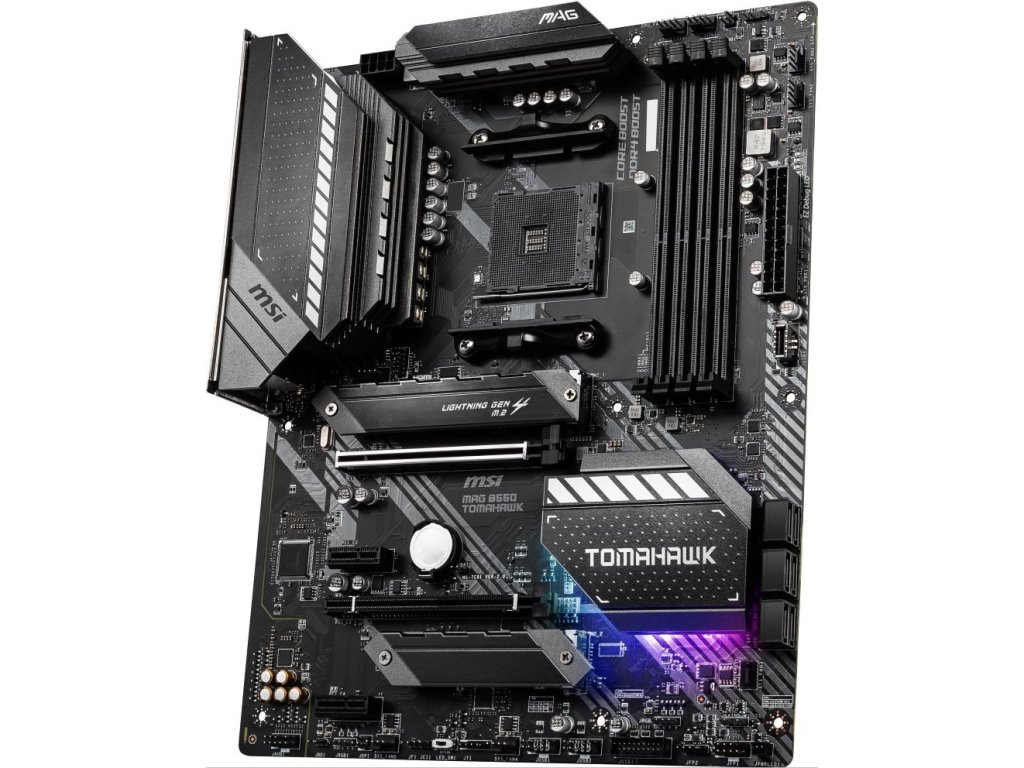

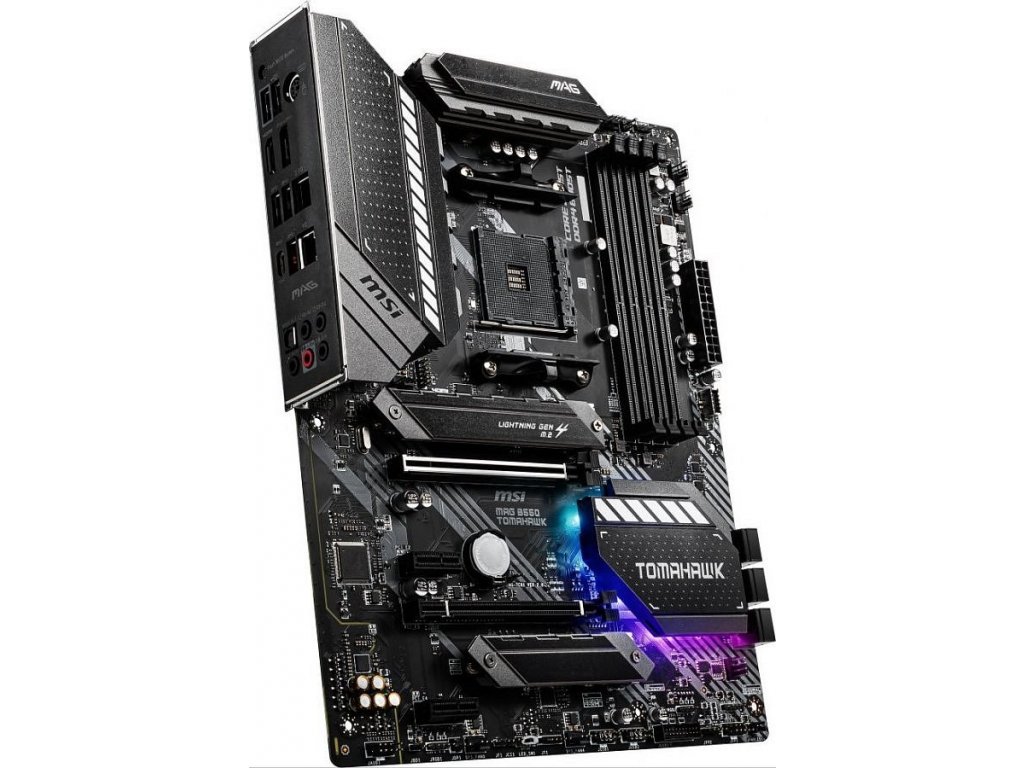

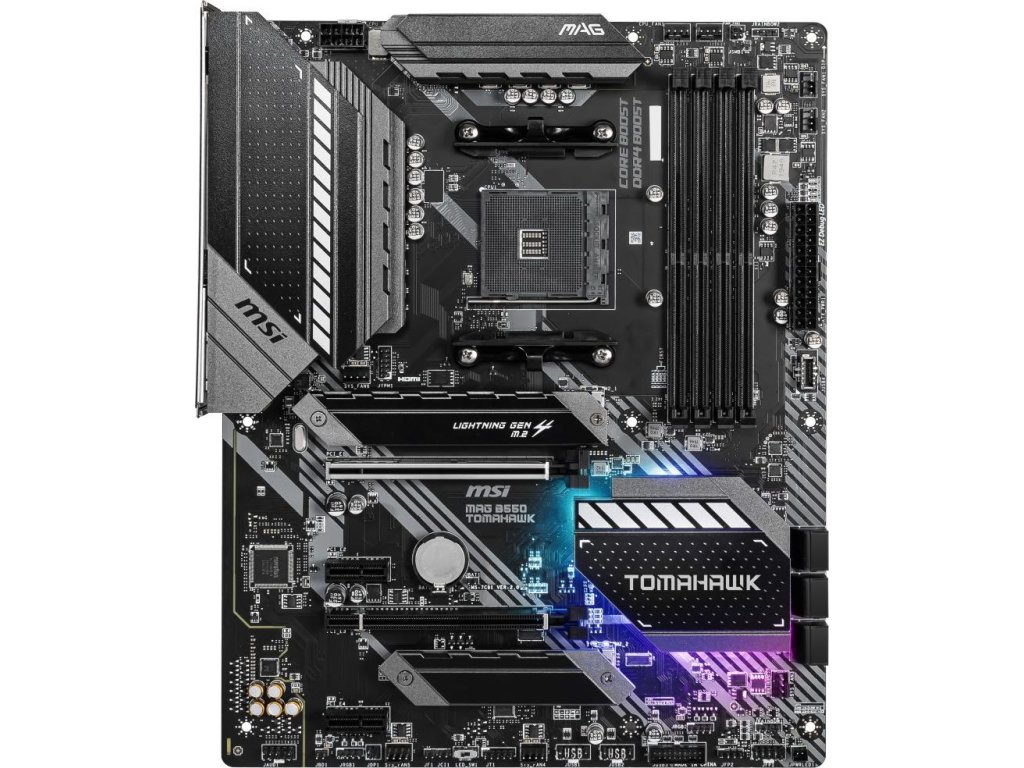

MSI MB Sc AM4 MAG B550 TOMAHAWK, AMD B550, 4xDDR4, VGA, ATX

Podrobný popis

Chipset: AMD B550

Rozměrový formát: Formát ATX (305 mm x 244 mm)

Podpora pro procesory: 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update

Patice procesoru: AM4

Pozice na paměti: 4x DDR4

Podpora pro paměti:

*Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

*Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE

Max.velikost operační paměti: 128 GB

Podpora pro paměti typu: DDR4

*Dual channel memory architecture

*Supports non-ECC UDIMM memory

*Supports ECC UDIMM memory (non-ECC mode)

*Supports un-buffered memory

Grafické výstupy: na základě procesoru

*1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz

*1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz

Multi GPU:

*Supports 2-Way AMD CrossFire™ Technology

Zvuková karta:

*Realtek® ALC1200 Codec

Síťová karta:

*1x Realtek® RTL8125B 2.5Gbps LAN controller

*1x Realtek® RTL8111H 1Gbps LAN controller

RAID řadič:

*Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

*Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Rozšiřující sloty:

*1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)

*1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed

*2x PCIe 3.0 x1 slots

SATA:

*6x SATA 6Gb/s ports

M.2:

*2x M.2 slots (Key M)

USB:

*zadní USB porty ( celkem 6 )

*2x USB 2.0 ports

*1x USB 3.2 Gen 2 10Gbps Type-C port

*1x USB 3.2 Gen 2 10Gbps port

*2x USB 3.2 Gen 1 5Gbps Type-A ports

*přední USB porty ( celkem 7 )

*1x USB 3.2 Gen 1 5Gbps Type-C port

*2x USB 3.2 Gen 1 5Gbps ports

*4x USB 2.0 ports

Interní porty:

*1x 24-pin ATX main power connector

*1x 8-pin ATX 12V power connector

*6x SATA 6Gb/s connectors

*2x M.2 slots (M-Key)

*1x USB 3.2 Gen 1 5Gbps Type-C port

*1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

*2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

*1x 4-pin CPU fan connector

*1x 4-pin water-pump fan connector

*6x 4-pin system fan connectors

*1x Front panel audio connector

*2x System panel connectors

*1x Chassis Intrusion connector

*2x 4-pin RGB LED connectors

*2x 3-pin RAINBOW LED connectors

*1x TPM module connector

*1x Clear CMOS jumper

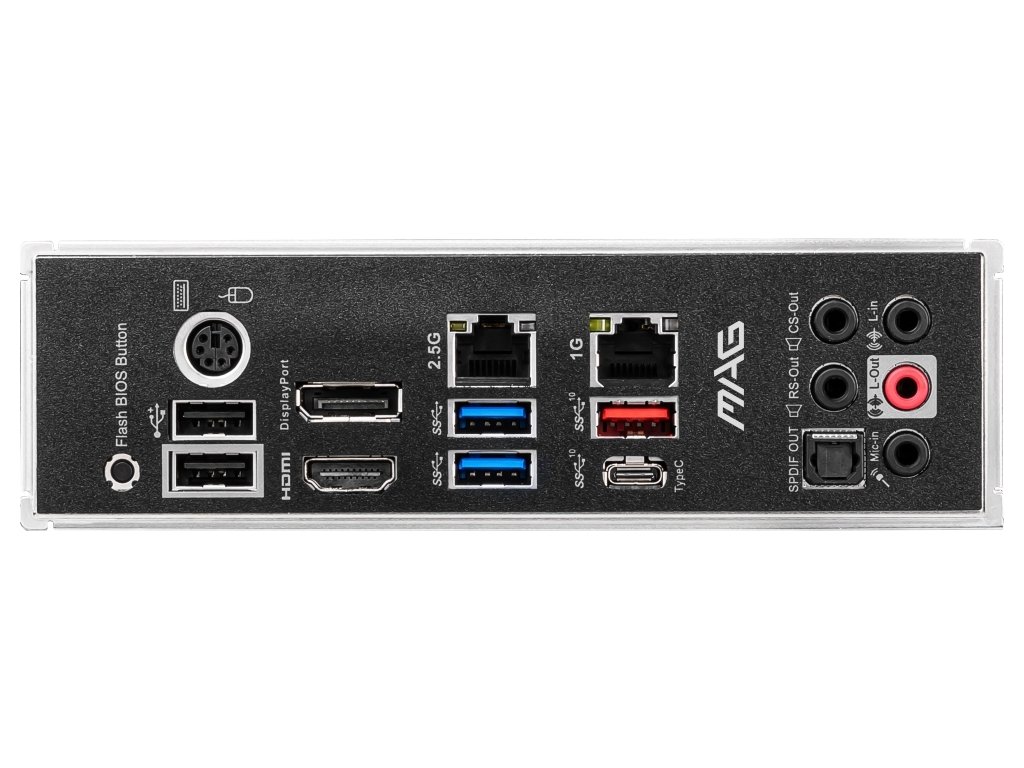

Externí porty:

*PS/2 Combo Port

*DisplayPort

*1x 2.5G LAN Port

*1x 1G LAN Port

*HD Audio Connectors

*Flash BIOS Button

*2x USB 2.0 Port

*HDMI Port

*2x USB 3.2 Gen 1 5Gbps (Type-A)

*1x USB 3.2 Gen 2 10Gbps (Type-A)

*1x USB 3.2 Gen 2 10Gbps (Type-C)

*Optical S/PDIF OUT

Stránka výrobce: https://cz.msi.com/Motherboard/MAG-B550-TOMAHAWK
