MSI MB Sc AM4 B550 GAMING WIFI, AMD B550, 1xHDMI 1xDP, 4xDDR4, ATX
Kód: 2648774Podrobný popis
MSI B550 GAMING WIFI
The B550 GAMING WIFI is crafted to offer extensive connectivity, versatile tools, and Wi-Fi solution for gamers seeking a comprehensive experience. Featuring an 1G LAN, Wi-Fi and PCIe 4.0 solution, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors.
Chipset
AMD B550
CPU
Supports 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Sock
Socket AM4
Memory
4x DDR4, Maximum Memory Capacity 128GB
Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE
• 1DPC 1R Max speed 4800 MHz
• 1DPC 2R max speed 3866 MHZ
• 2DPC 1R max speed 4000 MHZ
• 2DPC 2R max speed 3600 MHZ
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
• Supports un-buffered memory
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Graphics
1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.2, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Expansion Slots
2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio
Realtek ALC897
7.1-Channel High Definition Audio
Storage
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280 devices
6x SATA 6G
Multi-GPU
AMD MULTI-GPU Support
USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
LAN
Realtek 8111H 1G LAN
Internal I/O Connectors
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable RGB LED connector(JRAINBOW)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
1x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
Wireless Communication module
Wi-Fi 5 Solution
Supports Bluetooth 5.0
LED FEATURE
4x EZ Debug LED

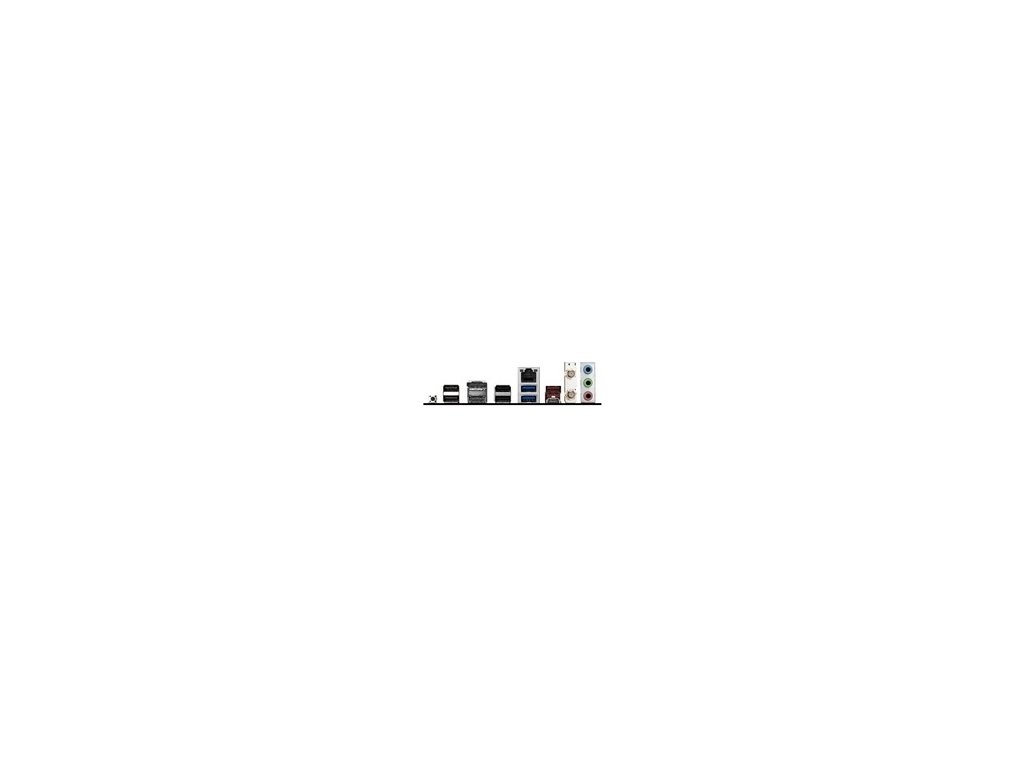

Back Panel I/O Ports
USB 2.0
DisplayPort 1.2
1G LAN
USB 10Gbps (Type-A)
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
HDMI™
USB 2.0
USB 5Gbps (Type-A)
USB 10Gbps (Type-C)
Operating System
Support for Windows 11 64-bit
BOX CONTENT
Form Factor
ATX
243.84mmx304.8mm
Dodatočné parametre
| Kategória: | socket AM4 |
|---|---|
| Záruka: | 36 Měsíc(ů) |
| Hmotnosť: | 1.652 kg |
| EAN: | 4711377376143 |
| 3.5mm Jack: | Ano |
| Bezdrátové připojení: | WiFi + Bluetooth |
| COM port: | Ano |
| Délka: | 34.8 cm |
| DisplayPort: | 1 |
| DVI: | 0 |
| Formát základní desky: | ATX |
| HDMI: | 1 |
| Hmotnosť: | 1.652 kg |
| Chipset: | AMD B550 |
| LAN: | 1Gbit/s |
| Led Header: | Ano |
| LPT port: | Ne |
| M.2 slot: | 2 |
| PCI: | 0 |
| PCI Express x1: | 1 |
| PCI Express x16: | 2 |
| Počet paměťových slotů: | 4 |
| Podpora RAID: | 10 |
| Pro procesory: | AMD |
| SATA 3: | 6 |
| Socket (patice): | Socket AM4 |
| Šířka: | 27.2 cm |
| Technologie paměti RAM: | DDR4 |
| TPM: | Ano |
| USB 2: | 8 |
| USB 3: | 5 |
| USB-C: | 2 |
| VGA: | 0 |
| Výška: | 9.2 cm |
| Záruka: | 36 Měsíc(ů) |
