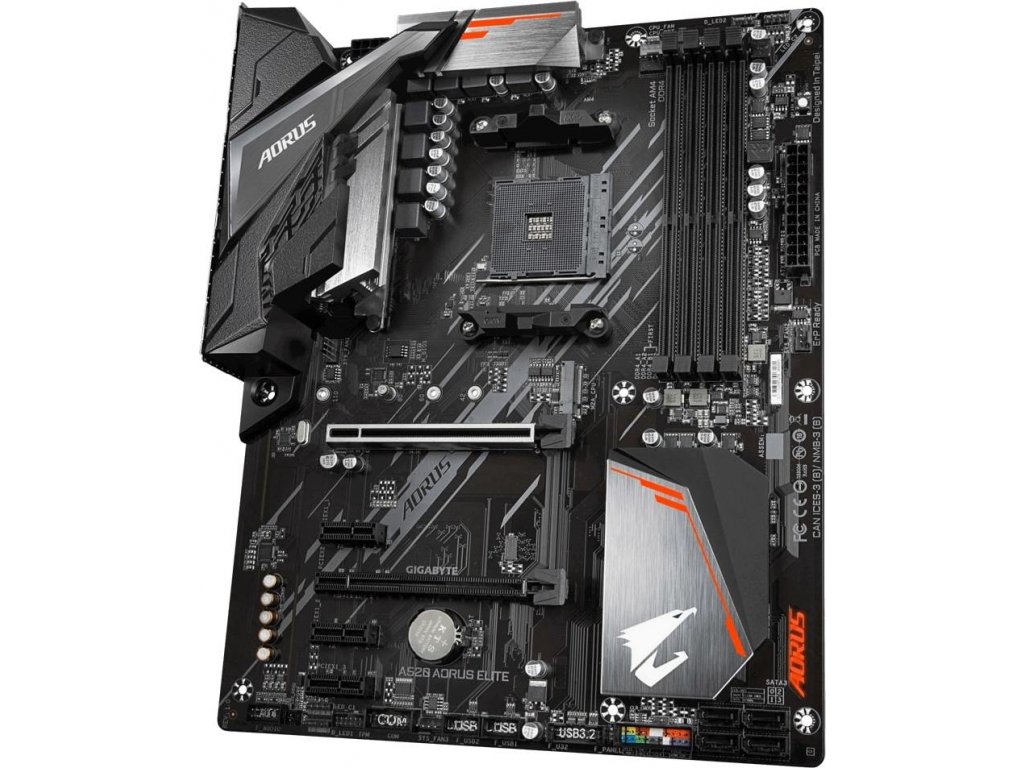

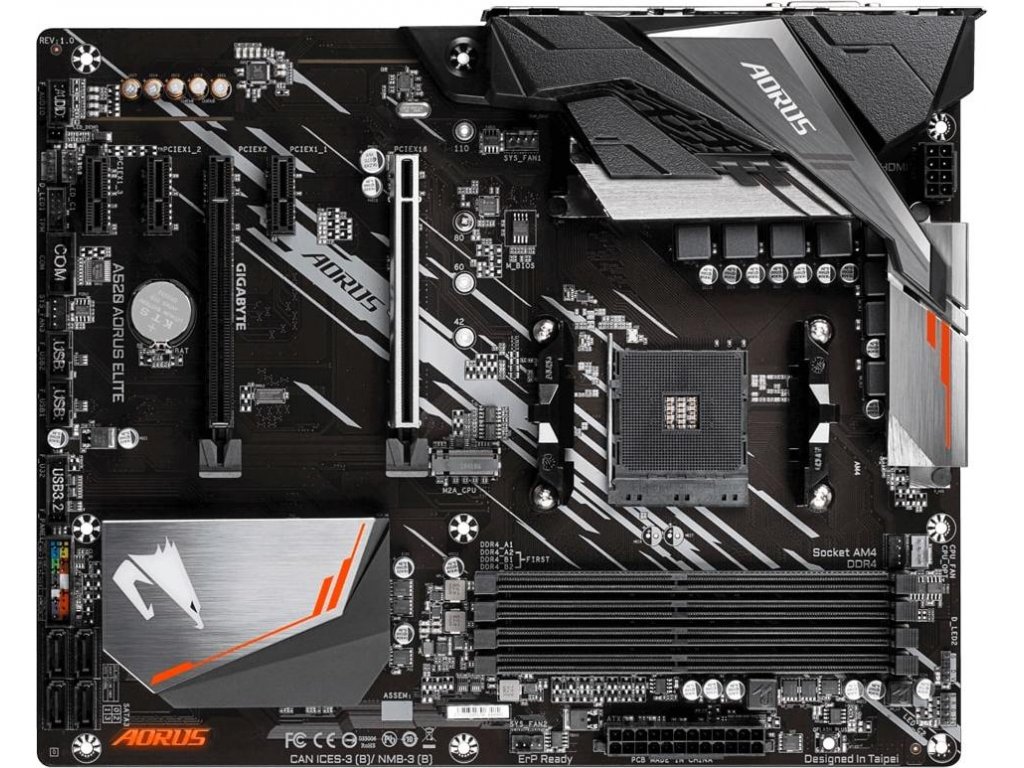

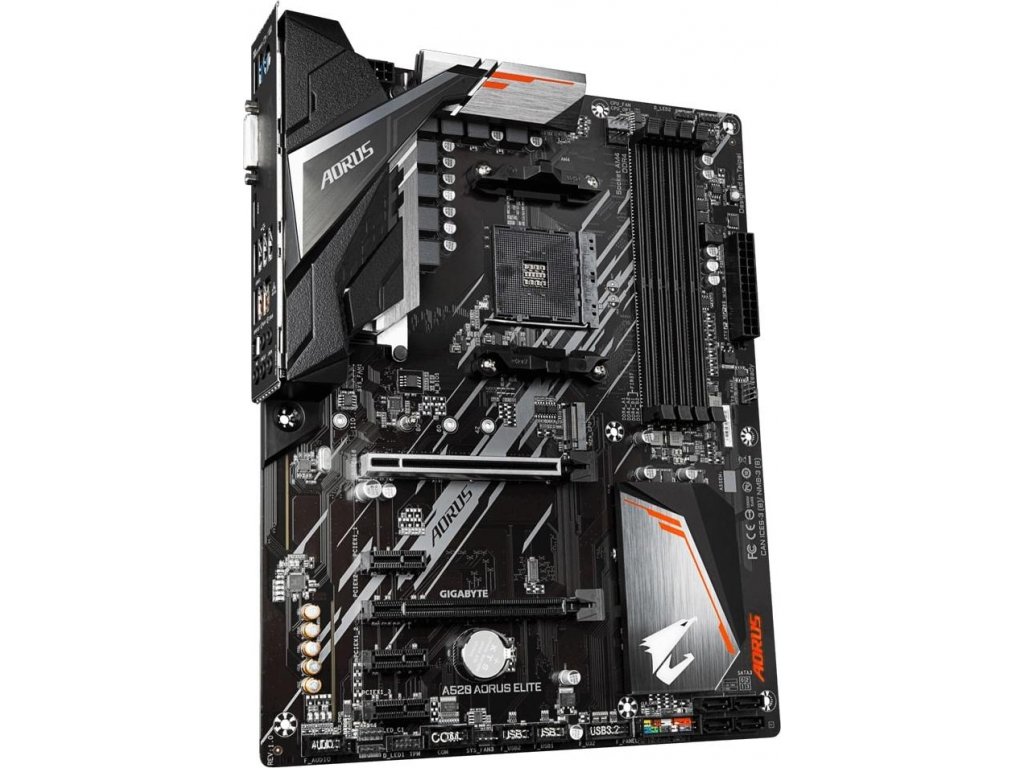

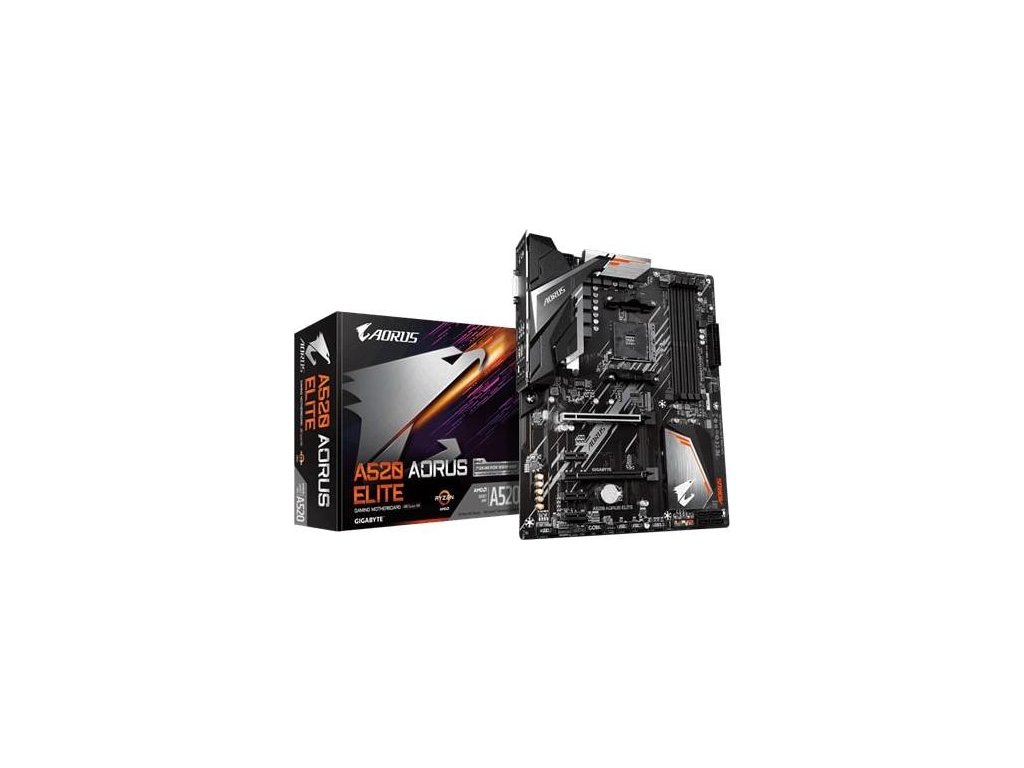

GIGABYTE MB Sc AM4 A520 AORUS ELITE, AMD A520, 4xDDR4, HDMI, DVI

Podrobný popis

Chipset: AMD A520

Rozměrový formát: ATX Form Factor (305 mm x 244 mm)

Podpora pro procesory: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors

Patice procesoru: AM4

Pozice na paměti: 4x DDR4 DIMM

Podpora pro paměti:

3rd Gen AMD Ryzen™ Processors:

4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:

4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

Max.velikost operační paměti: 128 GB

Podpora pro paměti typu: DDR4

*Dual channel memory architecture

*Podpora ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

*Podpora non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

*Podpora Extreme Memory Profile (XMP) memory modules

Grafické výstupy:

*Integrovaná v 3. generaci AMD Ryzen™ s Radeon™ grafickým procesorem (na základě cpu)

Zvuková karta:

*Realtek® ALC1200 codec

Síťová karta:

*Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

Rozšiřující sloty:

*1x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)

*1x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

*3x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2, PCIEX1_3)

RAID řadič: 0, 1, 10

SATA:

*4x SATA 6Gb/s ports

M.2:

*1x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)

USB:

*zadní USB porty ( celkem 8 )

*1x USB 3.2 Gen 2 Type-A port (red)

*3x USB 3.2 Gen 1 ports

*4x USB 2.0/1.1 ports

*přední USB porty ( celkem 6 )

*2x USB 3.2 Gen 1 ports

*4x USB 2.0/1.1 ports

Interní porty:

*1x 24-pin ATX main power connector

*1x 8-pin ATX 12V power connector

*1x CPU fan header

*1x water cooling CPU fan header

*3x system fan headers

*2x addressable LED strip headers

*2x RGB LED strip headers

*1x M.2 Socket 3 connector

*4x SATA 6Gb/s connectors

*1x front panel header

*1x front panel audio header

*1x USB 3.2 Gen 1 header

*2x USB 2.0/1.1 headers

*1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

*1x serial port header

*1x Clear CMOS jumper

*1x Q-Flash Plus button

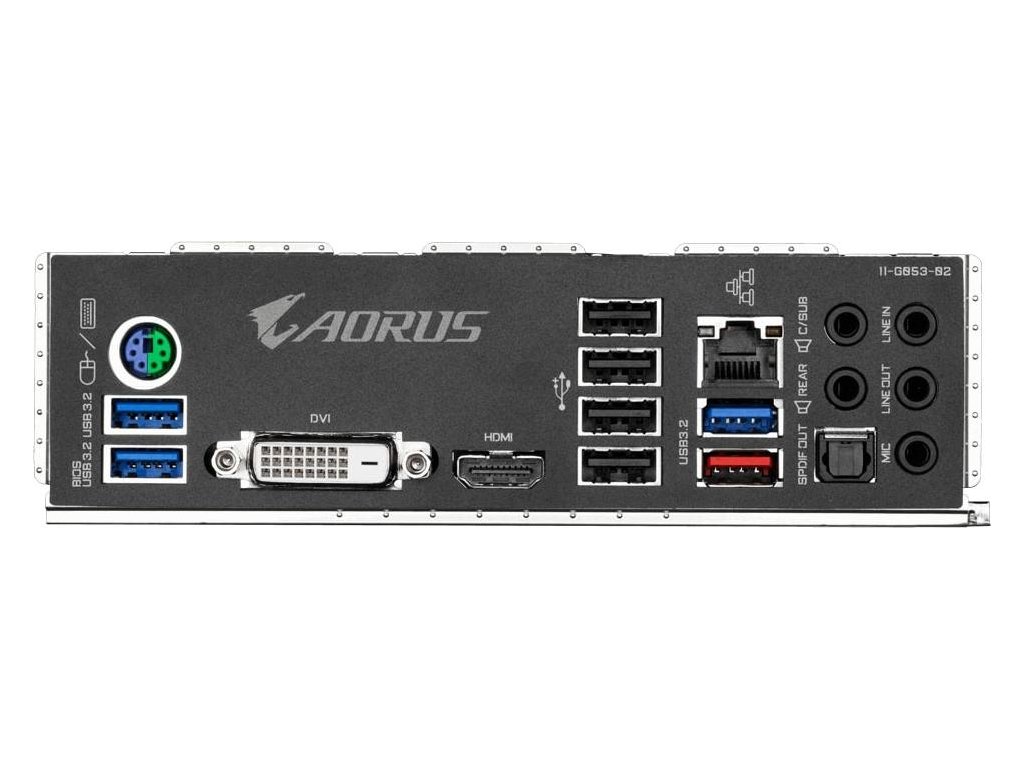

Externí porty:

*1x PS/2 keyboard/mouse port

*1x DVI-D port

*1x HDMI port

*1x USB 3.2 Gen 2 Type-A port (red)

*3x USB 3.2 Gen 1 ports

*4x USB 2.0/1.1 ports

*1x RJ-45 port

*1x optical S/PDIF Out connector

*5x audio jacks

BIOS: 128 Mbit flash, AMI UEFI BIOS

Stránka výrobce: https://www.gigabyte.com/Motherboard/A520-AORUS-ELITE-rev-10
