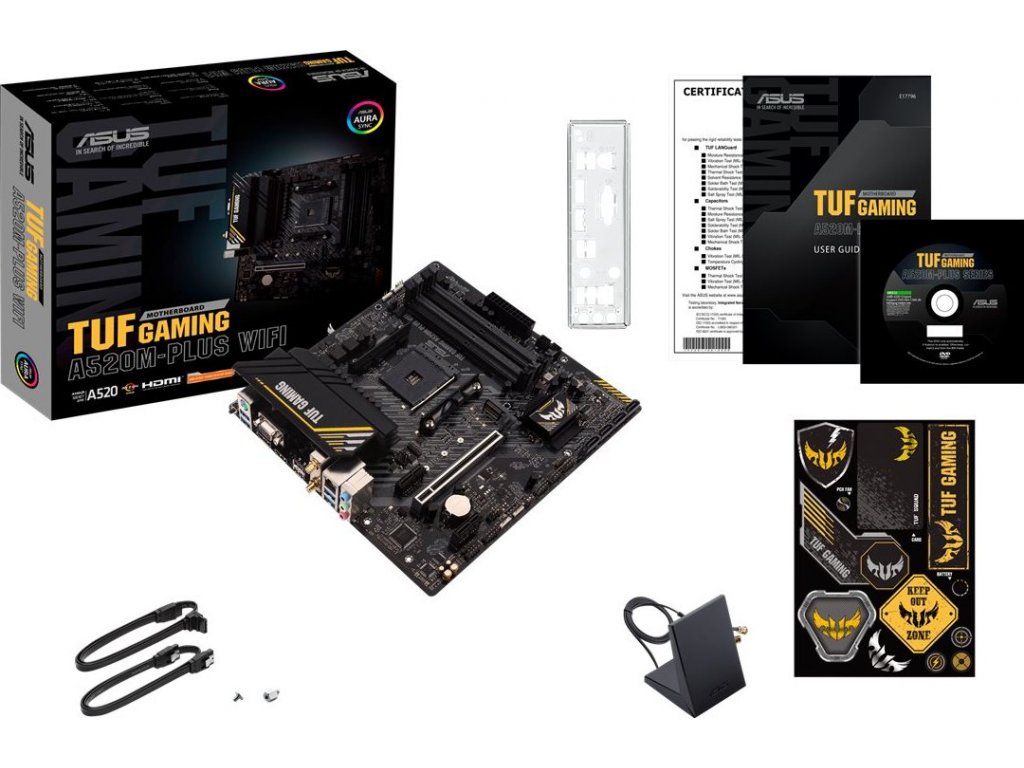

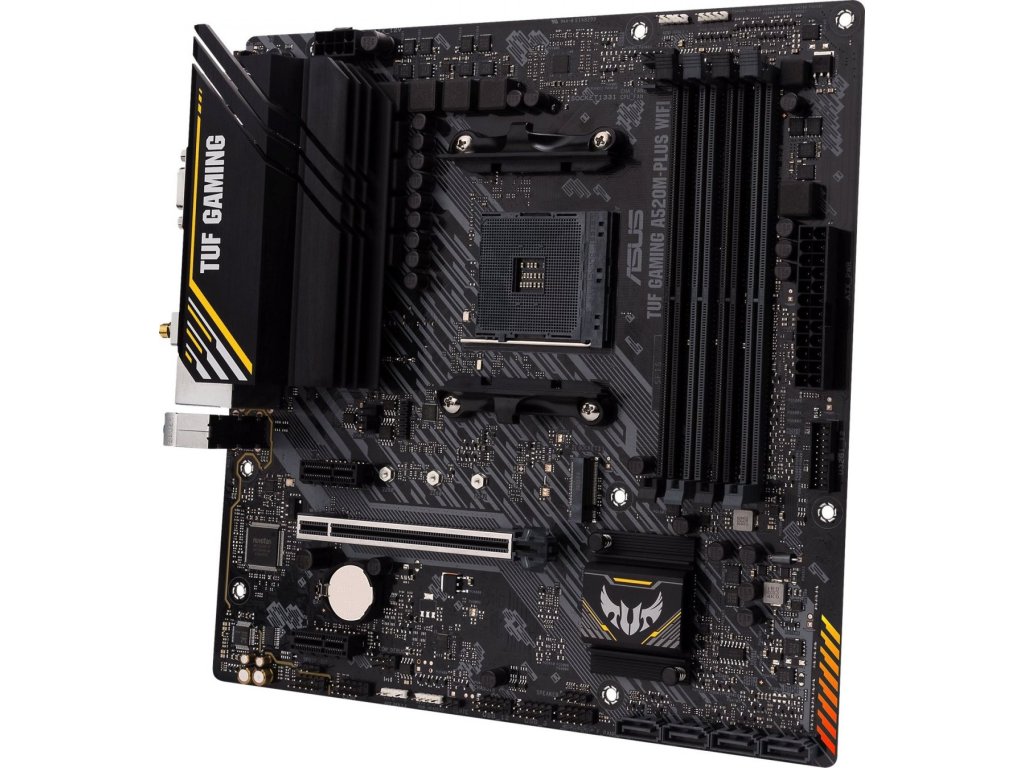

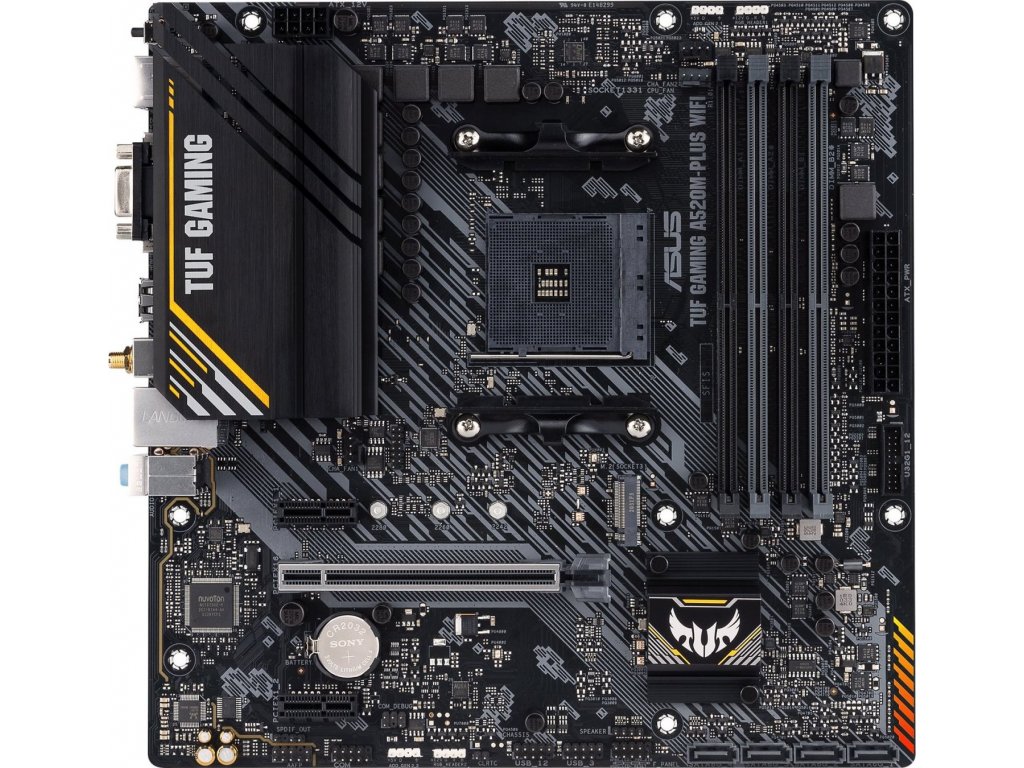

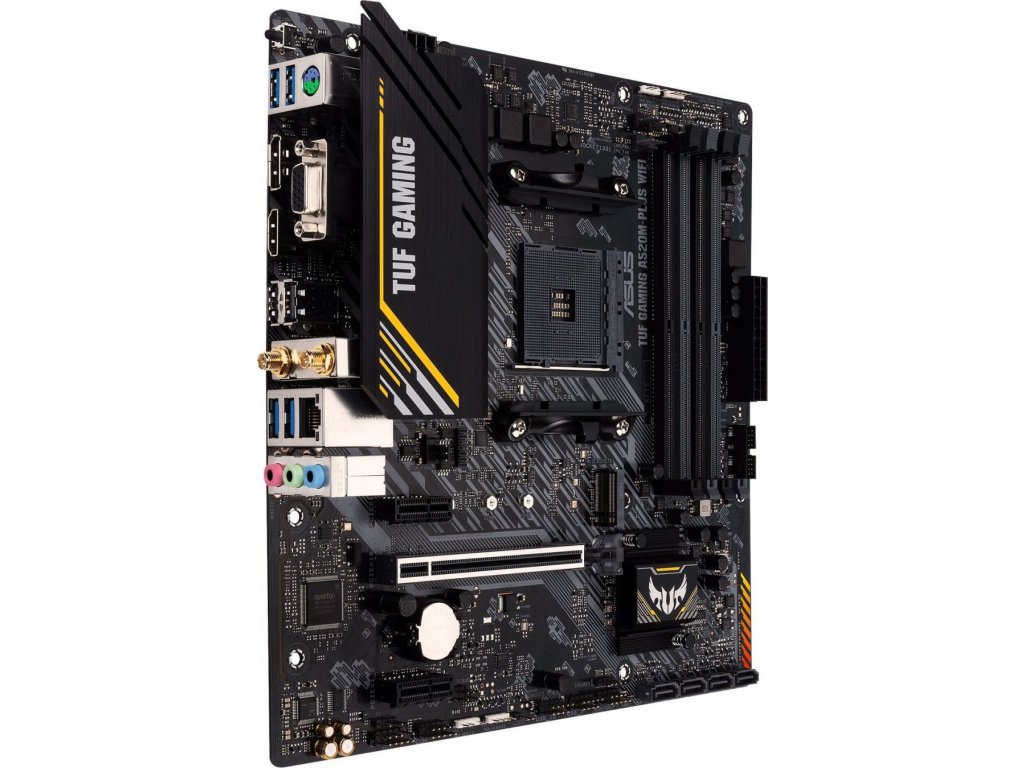

ASUS TUF GAMING A520M-PLUS WIFI, AM4, AMD A520, 4xDDR4, 1xDP, 1xHDMI, VGA, WI-FI, mATX

Podrobný popis

Chipset: AMD A520

Rozměrový formát: microATX (24.4cm x 24.4cm)

Podpora pro procesory: AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

Pozice na paměti: 4 x DIMM, Dual Channel Memory Architecture

Podpora pro paměti: DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz

Max.velikost operační paměti: 128 GB

Podpora pro paměti typu: ECC

Grafické výstupy: (na základě procesoru)

*1 x DisplayPort 1.2

*1 x HDMI 2.1(4K@60Hz)

*1 x D-Sub

Zvuková karta: Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC

Síťová karta:

*1 x Realtek 1Gb Ethernet

*Wi-Fi 5 (802.11 a/b/g/n/ac)

*Bluetooth v5.0

Rozšiřující sloty:

*1 x PCIe 3.0 x16 slot (supports x16 mode)

*2 x PCIe 3.0 x1 slots

RAID řadič: RAID 0, 1, 10

SATA: 4 x SATA 6Gb/s ports

M.2: 1 x M.2 slot

USB:

*Interní:

*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

*2 x USB 2.0 headers support additional 3 USB 2.0 ports

*Externí:

*4 x USB 3.2 Gen 1 ports (4 x Type-A)

*2 x USB 2.0 ports (2 x Type-A)

Interní porty:

*Fan and cooling related

*1 x 4-pin CPU Fan header

*2 x 4-pin Chassis Fan headers

*Power related

*1 x 24-pin Main Power connector

*1 x 8-pin +12V Power connector

*Storage related

*1 x M.2 slot (Key M)

*4 x SATA 6Gb/s ports

*USB

*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

*2 x USB 2.0 headers support additional 3 USB 2.0 ports

*Miscellaneous

*2 x AURA Addressable Gen 2 header Neous

*2 x AURA RGB headers

*1 x Clear CMOS header

*1 x COM Port header

*1 x Front Panel Audio header (AAFP)

*1 x S/PDIF Out header

*1 x Speaker header

*1 x SPI TPM header (14-1pin)

*1 x 10-1 pin System Panel header

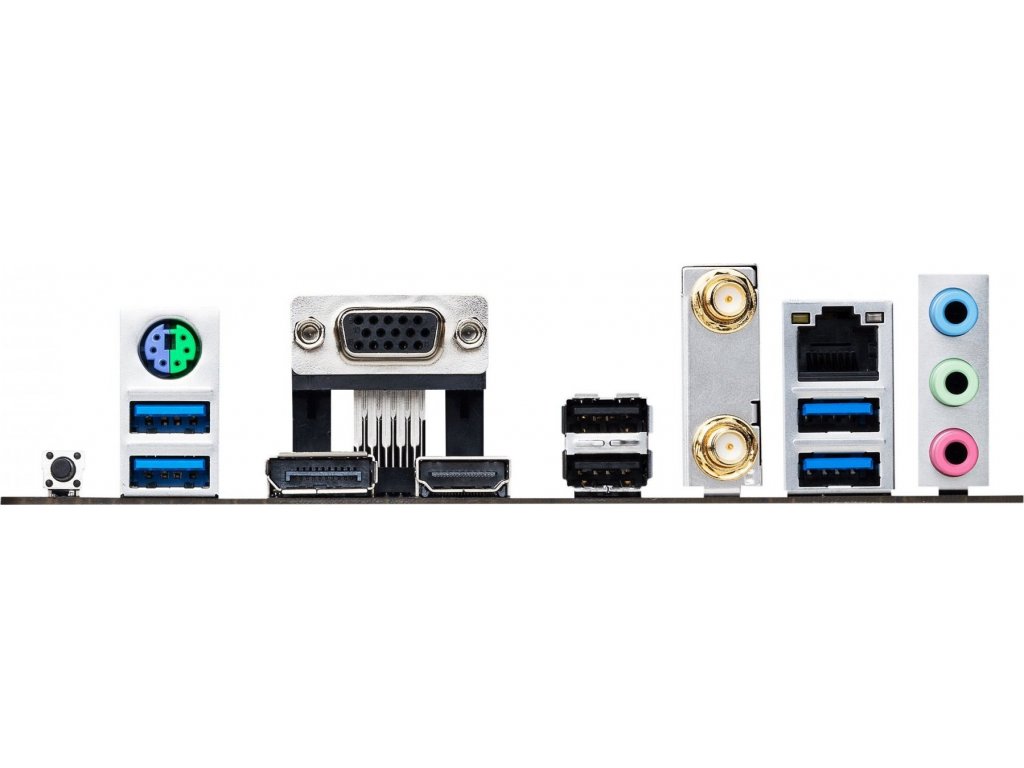

Externí porty:

*4 x USB 3.2 Gen 1 ports (4 x Type-A)

*2 x USB 2.0 ports (2 x Type-A)

*1 x DisplayPort

*1 x HDMI port

*1 x D-Sub

*1 x ASUS Wi-Fi Module

*1 x Realtek 1Gb Ethernet port

*3 x Audio jacks

*1 x BIOS FlashBack button

*1 x PS/2 Keyboard/Mouse combo port

BIOS: UEFI AMI BIOS, 128 Mb Flash ROM
