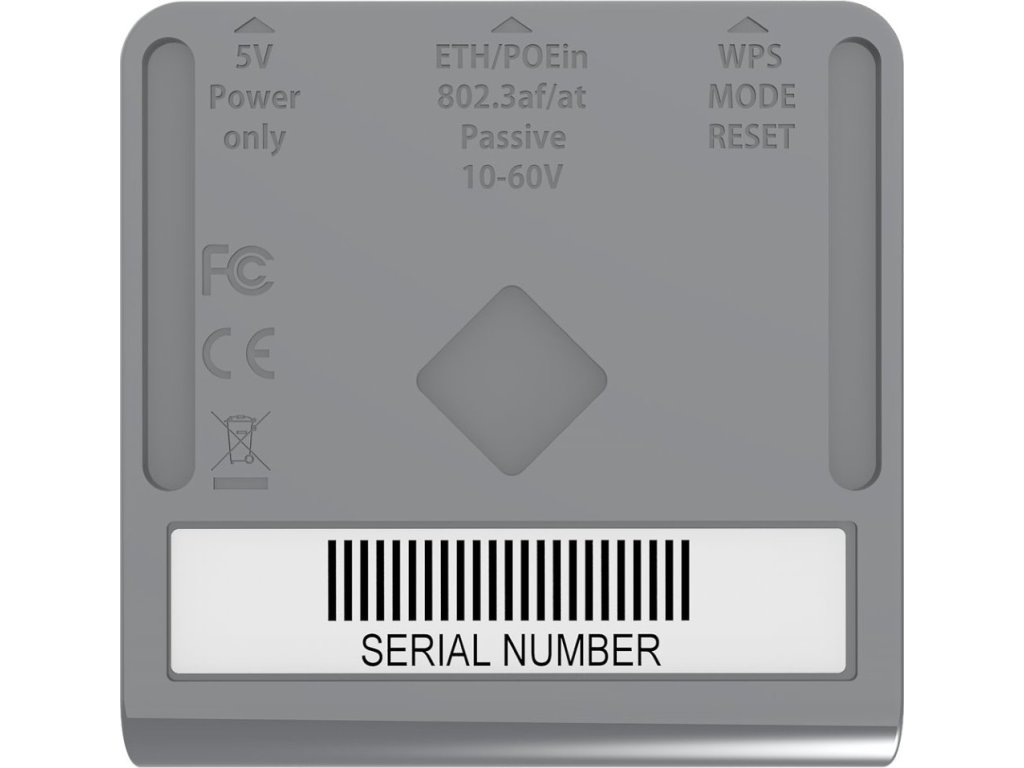

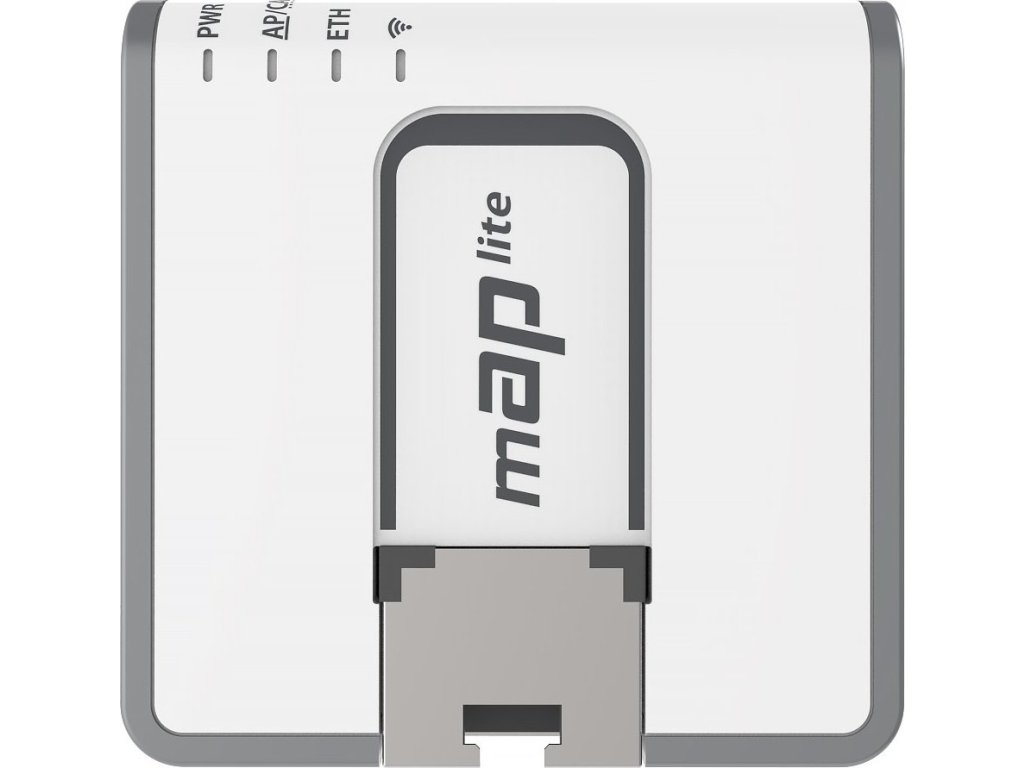

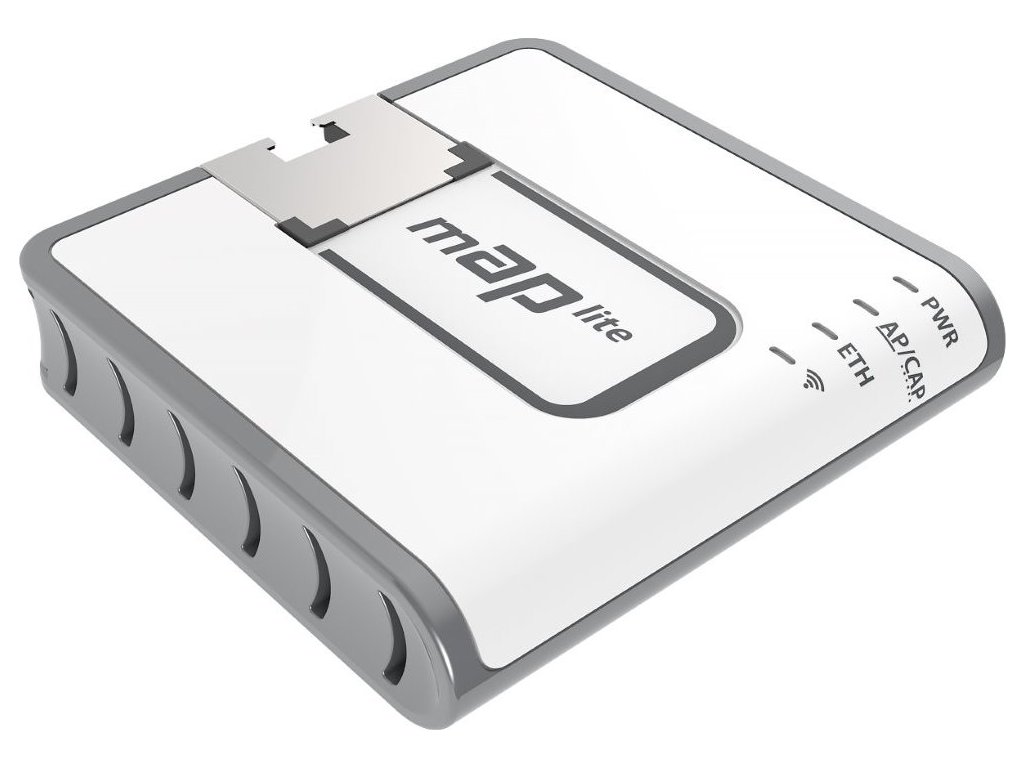

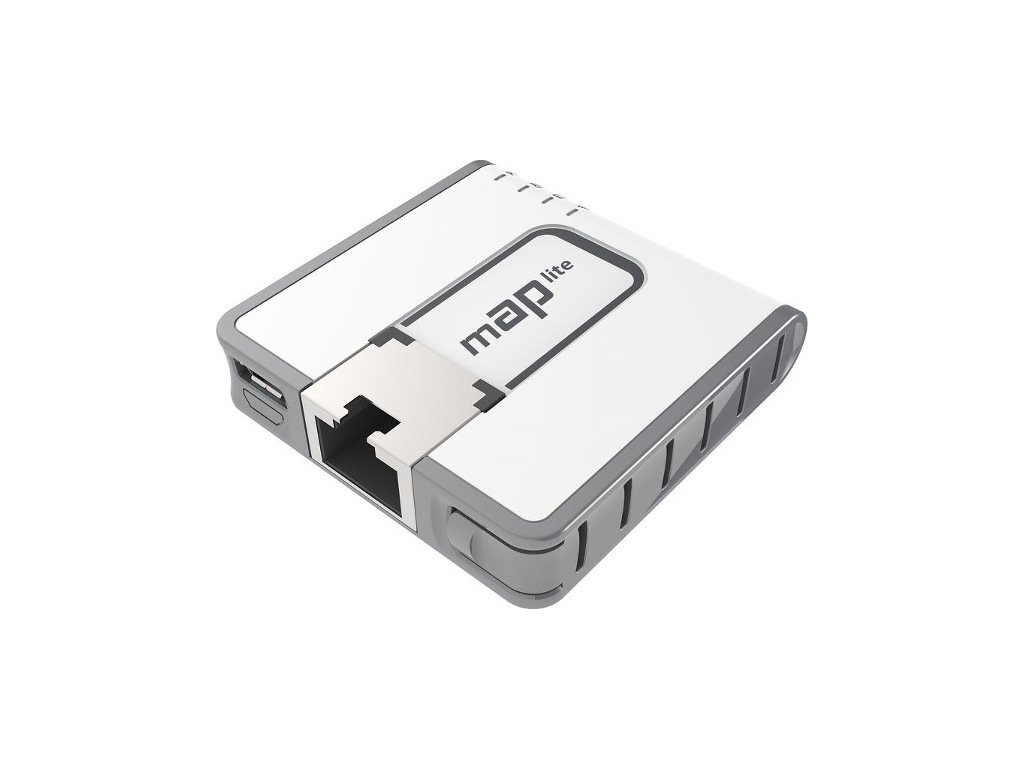

MikroTik RouterBOARD mAP lite

Podrobný popis

PŘEHLEDcolor= "#004385">

The mAP lite is our smallest wireless access point. It is barely larger than a matchbox, we even had to use a special Ethernet port to match it’s slim profile.

You can carry it anywhere: use as a travel router to extend that hotel internet to all your devices, or as a client device to improve your laptop signal range, the tiny mAP lite will be always with you.

It can also serve as a simple configuration tool for your servers, if there is no ethernet on your mobile device.

The mAP lite is a dual chain 802.11 b/g/n device and operates in 2GHz.

PRODUCT SPECIFICATIONcolor= "#004385">

Product code

* RBmAPL-2nD

CPU nominal frequency

* 650 MHz

CPU core count

* 1

Size of RAM

* 64 MB

10/100/1000 Ethernet ports

* 1

Wireless standards

* 802.11b/g/n

Wireless chip model

* QCA9533

Power Jack

* 1

PoE in

* 802.3af/at (+4,5/-7,8 or +3,6/-1,2)

Supported input voltage

* 5 V - 60 V

Dimensions

* 48x49x11mm

Operating System

* RouterOS

Operating temperature range

* -30C +70C

License level

* 4

Antenna gain DBI

* 1,5

CPU

* QCA9533

Max Power consumption

* 3,5 W

Number of chains

* 2

Storage type

* FLASH

Storage size

* 16 MB

WEB VÝROBCEcolor= "#004385">

http://routerboard.com/RBmAPL-2nD
