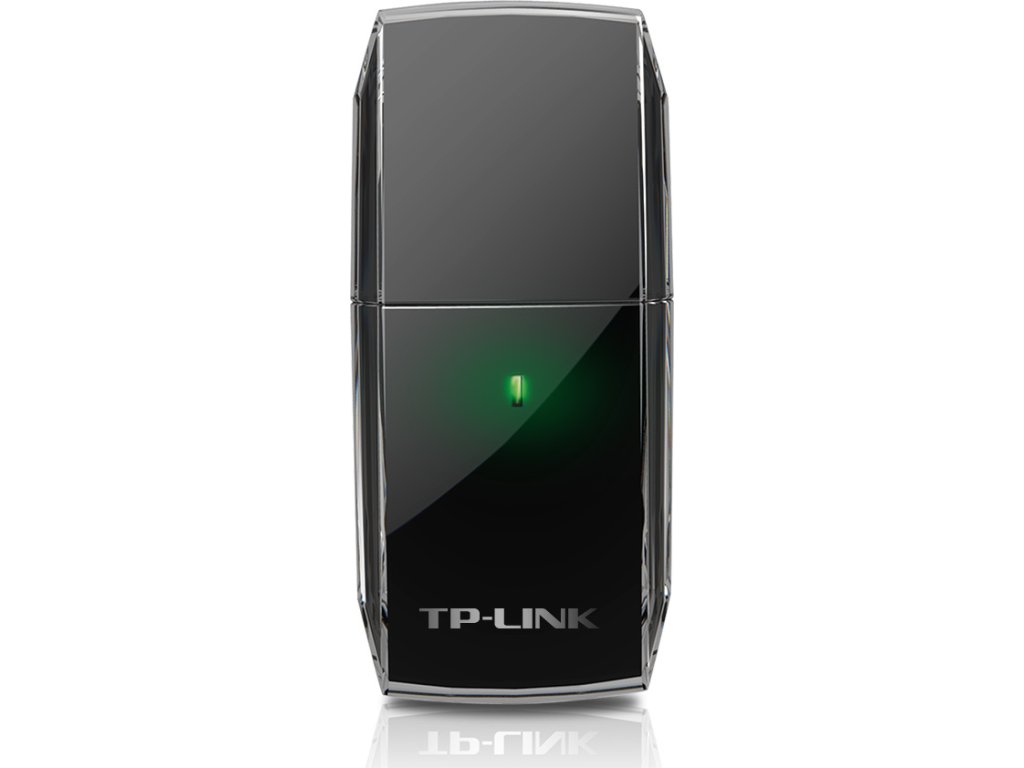

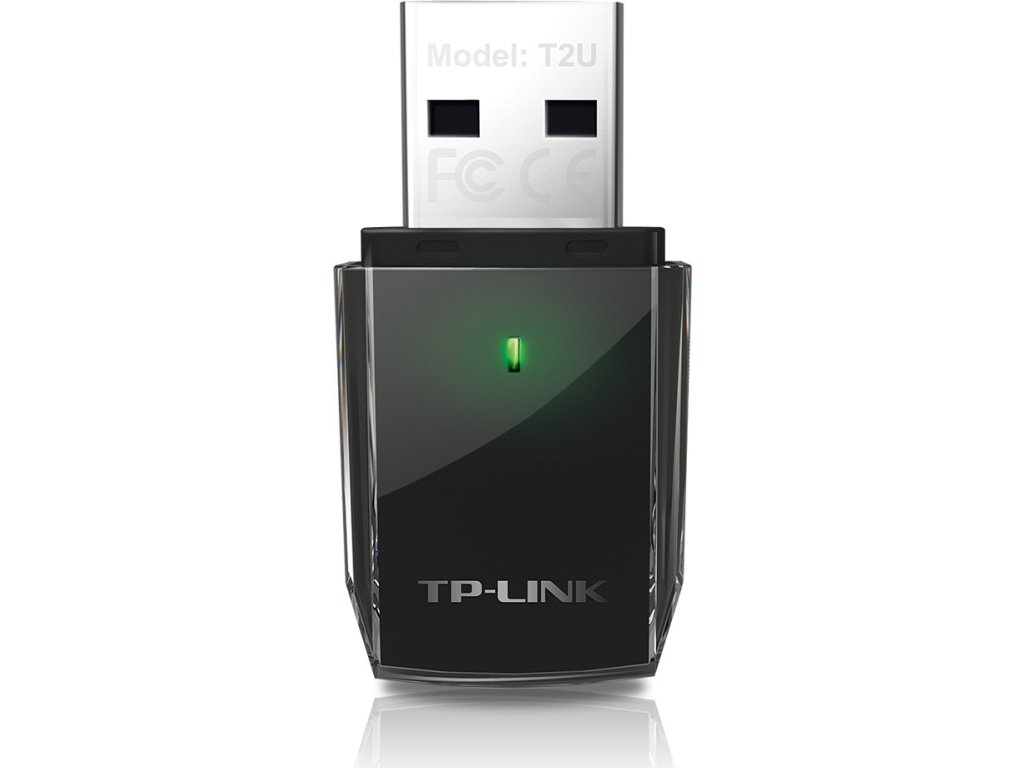

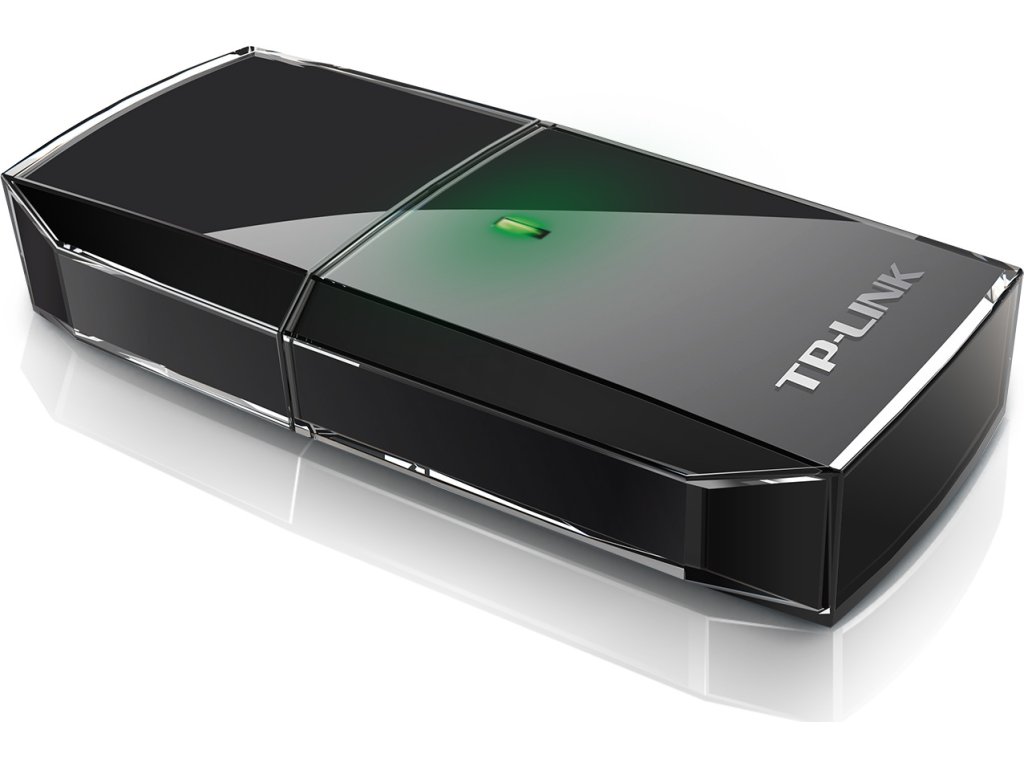

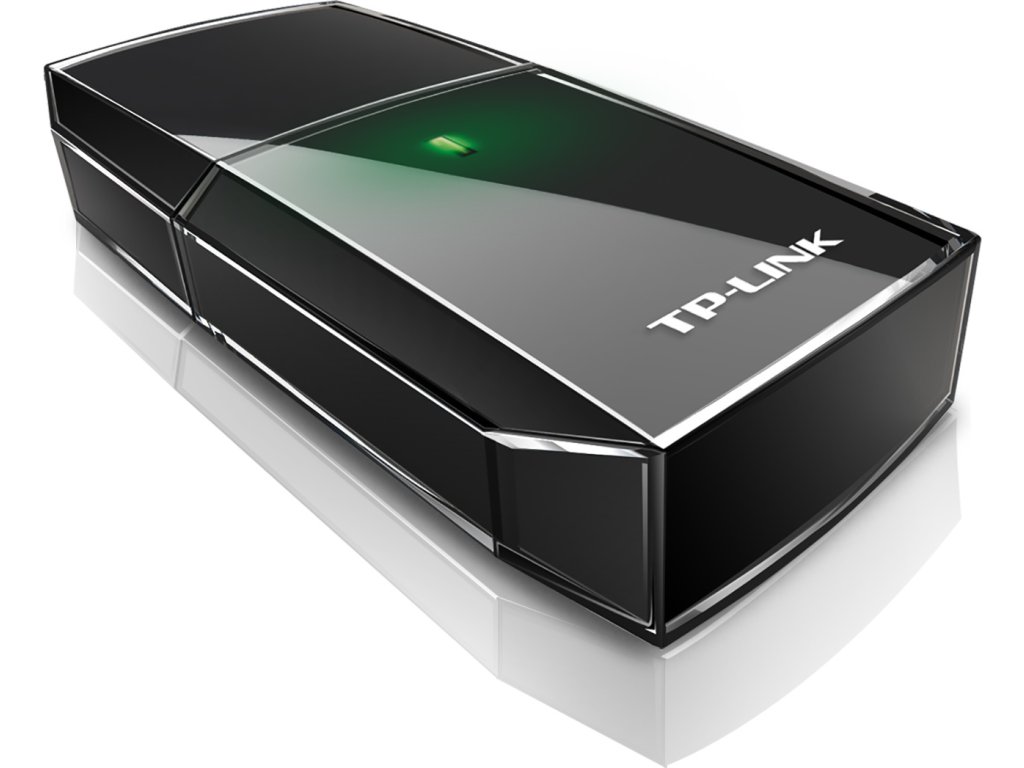

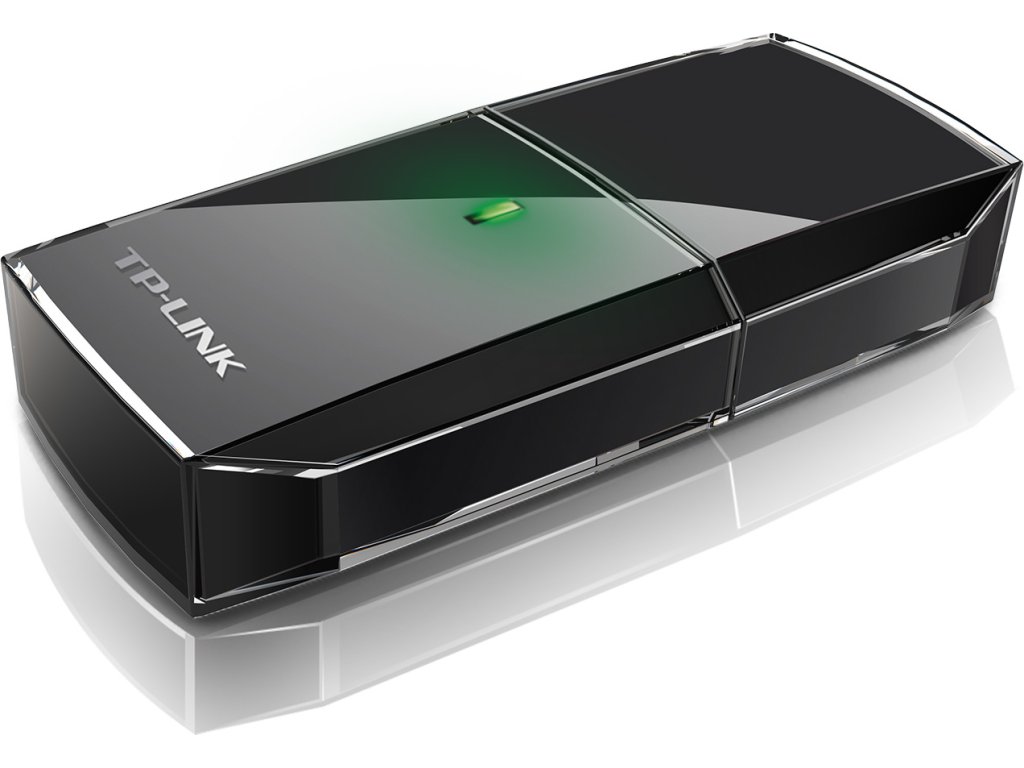

TP-Link Archer T2U

Podrobný popis

TP-Link Archer T2U AC600 Wifi Dual B. USB Adapter

OVERVIEW

* 600 (433+150)Mbps wireless speed with 802.11ac

* A tiny way to get speedy next generation Wi-Fi connections

* Selectable Dual Band connections for lag-free HD video streaming and gaming

* Advanced Security: Supports 64/128 WEP, WPA, PA2/WPA-PSK/WPA2-PSK (TKIP/AES)

* Supports Windows 8/7/XP

SPECIFICATIONS

HARDWARE FEATURES

Interfaces

* USB 2.0

Dimensions ( W x D x H )

* 41×19.5×8.7mm

Antenna Type

* Omni Directional

WIRELESS FEATURES

Wireless Standards

* IEEE 802.11ac, IEEE 802.11a,

* IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency

* 5GHz

* 2.4GHz

Signal Rate

* 5GHz

* 11ac: Up to 433Mbps(dynamic)

* 11a: Up to 54Mbps(dynamic)

* 2.4GHz

* 11n: Up to 150Mbps(dynamic)

* 11g: Up to 54Mbps(dynamic)

* 11b: Up to 11Mbps(dynamic)

EIRP

* <20dBm (EIRP)

Reception Sensitivity

* 5GHz:

* 11a 6Mbps: -94dBm

* 11a 54Mbps: -78dBm

* 11n HT20 MCS0: -94dBm

* 11n HT20 MCS7: -77dBm

* 11n HT40 MCS0: -92dBm

* 11n HT40 MCS7: -74dBm

* 11ac VHT80 MCS0: -89dBm

* 11ac VHT80 MCS9: -64dBm

* 2.4GHz:

* 11b 1Mbps: -99dBm

* 11b 11Mbps: -91dBm

* 11g 6Mbps: -94dBm

* 11g 54Mbps: -77dBm

* 11n HT20 MCS0: -95dBm

* 11n HT20 MCS7: -76dBm

* 11n HT40 MCS0: -92dBm

* 11n HT40 MCS7: -73dBm

Wireless Modes

* Ad-Hoc / Infrastructure mode

Wireless Security

* Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x

Modulation Technology

* DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM

OTHERS

Certification

* CE, FCC, RoHS

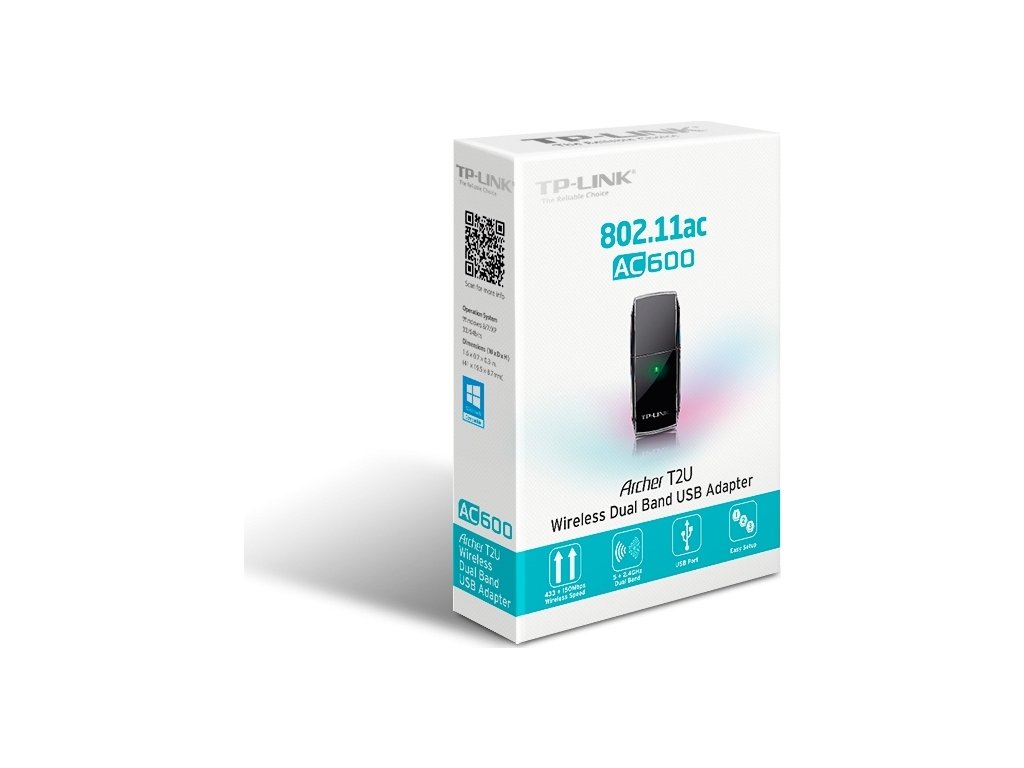

Package Contents

* Wireless Adapter Archer T2U

* Resource CD

* Quick Installation Guide

System Requirements

* Windows 8 (32/64bits), Windows 7 (32/64bits), Windows XP(32/64bits)

Environment

* Operating Temperature: 0°C~40°C

* Storage Temperature: -40°C~70°C

* Operating Humidity: 10%~90% non-condensing

* Storage Humidity: 5%~90% non-condensing
