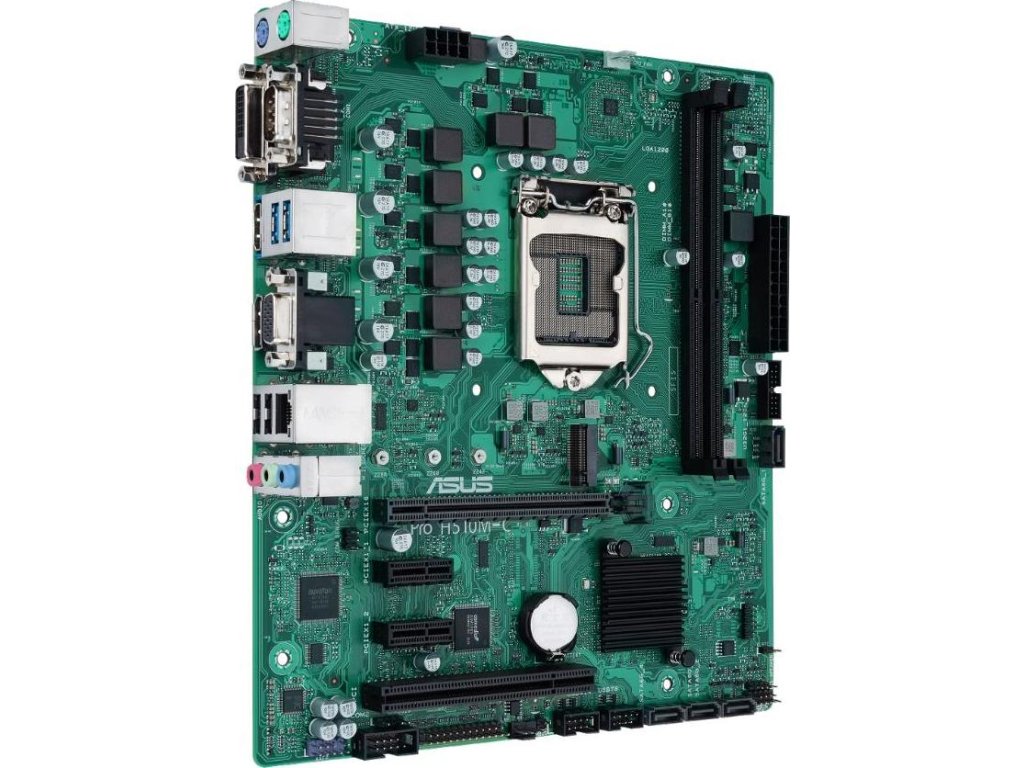

ASUS MB Sc LGA1200 PRO H510M-C/CSM, Intel H510, 2xDDR4, 1xDP, 1xHDMI, 1xDVI, 1xVGA, mATX

Podrobný popis

Chipset: Intel® H510 Chipset

Rozměrový formát: mATX Form Factor (244 mm x 216 mm)

Podpora pro procesory: Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

Patice procesoru: LGA 1200

Pozice na paměti: 2x DDR4 DIMM

Podpora pro paměti:

*3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Max.velikost operační paměti: 64 GB

Podpora pro paměti typu: DDR4

*Dual Channel Memory Architecture

*Intel® Extreme Memory Profile (XMP)

Grafické výstupy:

*Integrated Graphics Processor (na základě procesoru)

Zvuková karta:

*Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC

Síťová karta:

*1x Intel® I219-V 1Gb Ethernet

Rozšiřující sloty:

*1x PCIe 4.0/3.0 x16 slot

*1x PCI slot

*2x PCIe 3.0 x1 slots

SATA:

*4x SATA 6Gb/s ports

M.2:

*M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

USB:

*zadní USB porty ( celkem 4 )

*2x USB 3.2 Gen 1 ports (2 x Type-A)

*2x USB 2.0 ports (2 x Type-A)

*přední USB porty ( celkem 6 )

*2x USB 3.2 Gen 1 ports

*4x USB 2.0 ports

Interní porty:

*1x 4-pin CPU Fan header

*1x 4-pin Chassis Fan header

*1x 24-pin Main Power connector

*1x 8-pin +12V Power connector

*1x M.2 slot (Key M)

*4x SATA 6Gb/s ports

*1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

*2x USB 2.0 headers support additional 4 USB 2.0 ports

*1x Clear CMOS header

*1x Chassis Intrude header

*1x COM Port header

*1x Front Panel Audio header (AAFP)

*1x COM debug header

*1x LPT header

*1x SMBUS header

*1x Speaker header

*1x SPI TPM header (14-1pin)

*1x 10-1 pin System Panel header

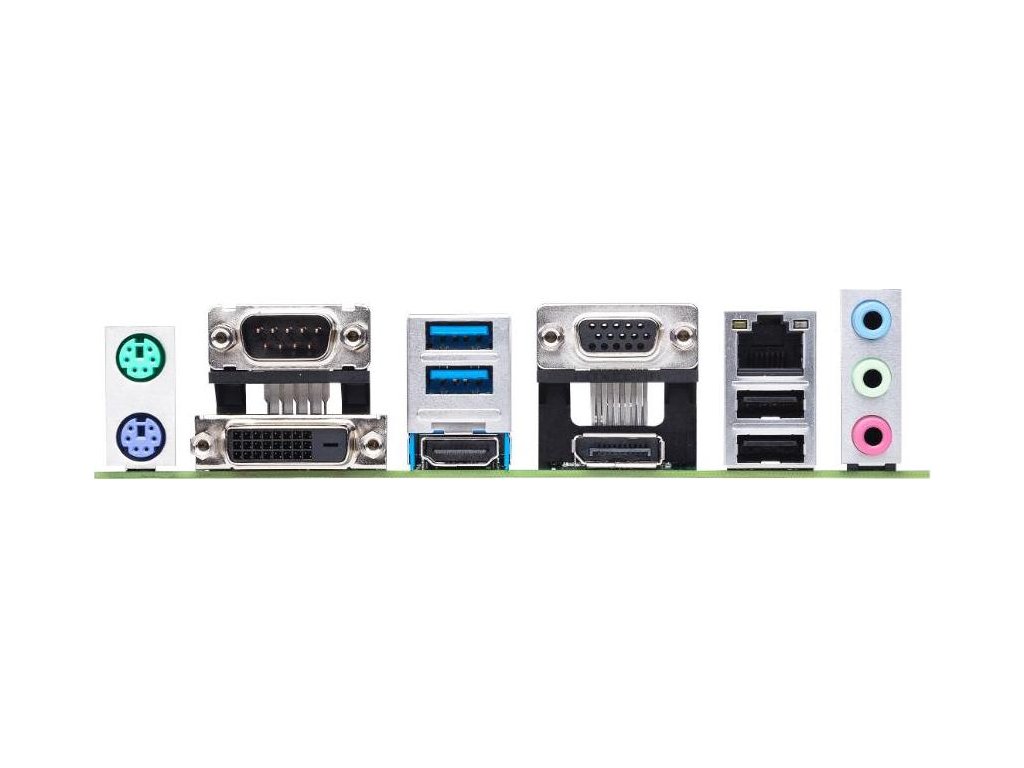

Externí porty:

*2x USB 3.2 Gen 1 ports (2 x Type-A)

*2x USB 2.0 ports (2 x Type-A)

*1x DisplayPort

*1x D-Sub port

*1x DVI-D port

*1x HDMI port

*1x Intel® I219-V 1Gb Ethernet port

*3x Audio jacks

*1x COM port

*1x PS/2 keyboard (purple) port

*1x PS/2 mouse (green) port

Obsah balení:

*2x SATA 6Gb/s cables

*1x I/O Shield

*1x M.2 SSD screw package

*1x Support DVD

*1x ACC Express Activation Key Card

*1x User manual

BIOS: 128 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobce: https://www.asus.com/Commercial-Motherboard/Pro-H510M-C-CSM

https://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/

https://www.asus.com/support/FAQ/1046215
