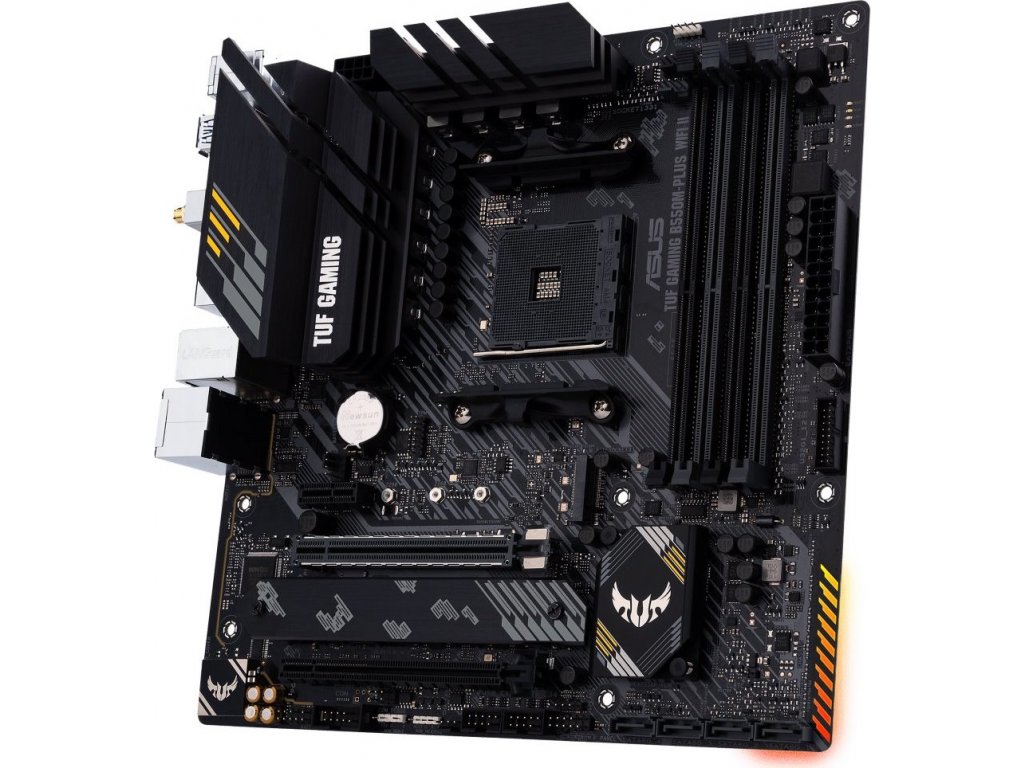

ASUS MB Sc AM4 TUF GAMING B550M-PLUS WIFI II, AMD B550, 4xDDR4, 1xDP, 1xHDMI, WI-FI, mATX

Podrobný popis

Chipset: B550

Rozměrový formát: microATX (24.4cm x 24.4cm)

Podpora pro procesory: AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

Pozice na paměti: 4 x DIMM DDR4, Dual Channel Memory Architecture

Podpora pro paměti: DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz

Max.velikost operační paměti: 128 GB

Podpora pro paměti typu: ECC

Grafické výstupy: (na základě procesoru)

*1 x DisplayPort

*1 x HDMI port

Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC

Síťová karta:

*TUF LANGuard

*Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

*Bluetooth 5.2

Rozšiřující sloty:

*AMD Ryzen 5000 Series/ 3000 Series Desktop Processors

*1 x PCIe 4.0 x16 slot (supports x16 mode)

*AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors

*1 x PCIe 3.0 x16 slot (supports x16 mode)

*AMD B550 Chipset

*1 x PCIe 3.0 x16 slot (supports x4 mode)

*1 x PCIe 3.0 x1 slot

RAID řadič: RAID 0, 1, 10

SATA: 4 x SATA 6Gb/s ports

M.2: 2 x M.2 slots (Key M)

USB:

*Interní:

*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

*2 x USB 2.0 headers support additional 4 USB 2.0 ports

*Externí:

*2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)

*4 x USB 3.2 Gen 1 ports (4 x Type-A, one port can be switched to USB BIOS FlashBack™)

*2 x USB 2.0 ports (2 x Type-A)

Interní porty:

*Fan and Cooling related

*1 x 4-pin CPU Fan header

*1 x 4-pin CPU OPT Fan header

*2 x 4-pin Chassis Fan headers

*Power related:

*1 x 24-pin Main Power connector

*1 x 8-pin +12V Power connector

*Storage related:

*2 x M.2 slots (Key M)

*4 x SATA 6Gb/s ports

*USB

*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

*2 x USB 2.0 headers support additional 4 USB 2.0 ports

*Miscellaneous:

*1 x Addressable Gen 2 header

*2 x AURA RGB headers

*1 x Clear CMOS header

*1 x COM Port header

*1 x Front Panel Audio header (AAFP)

*1 x Speaker header

*1 x SPI TPM header (14-1pin)

*1 x 10-1 pin System Panel header

Externí porty:

*2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)

*4 x USB 3.2 Gen 1 ports (4 x Type-A, one port can be switched to USB BIOS FlashBack)

*2 x USB 2.0 ports (2 x Type-A)

*1 x DisplayPort

*1 x HDMI port

*1 x Wi-Fi Module

*1 x Realtek 2.5Gb Ethernet port

*5 x Audio jacks

*1 x Optical S/PDIF out port

*1 x BIOS FlashBack button

*1 x PS/2 Keyboard/Mouse combo port

BIOS: UEFI AMI BIOS, 256 Mb Flash ROM
